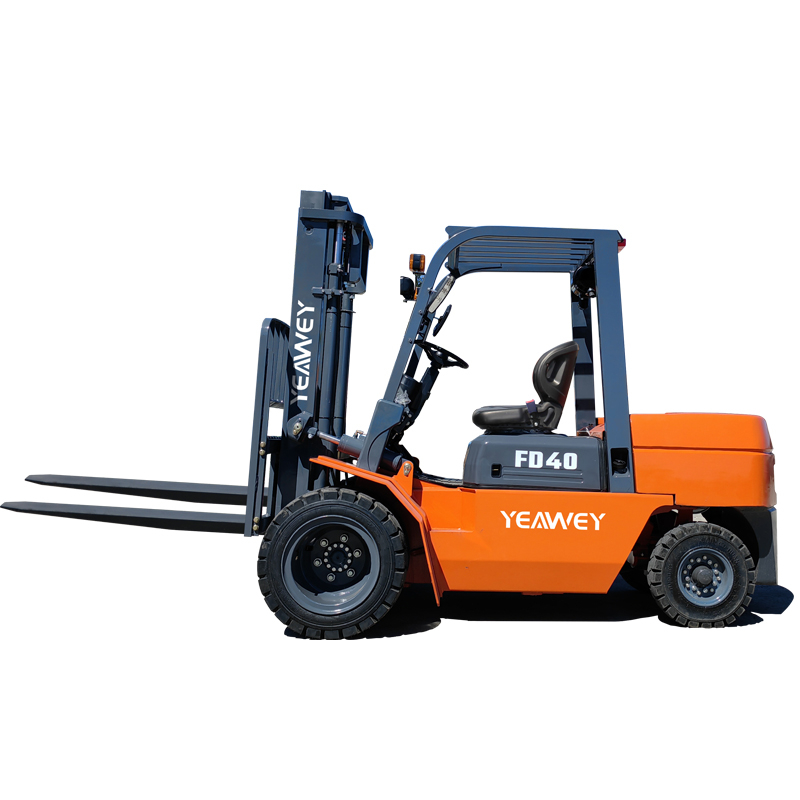

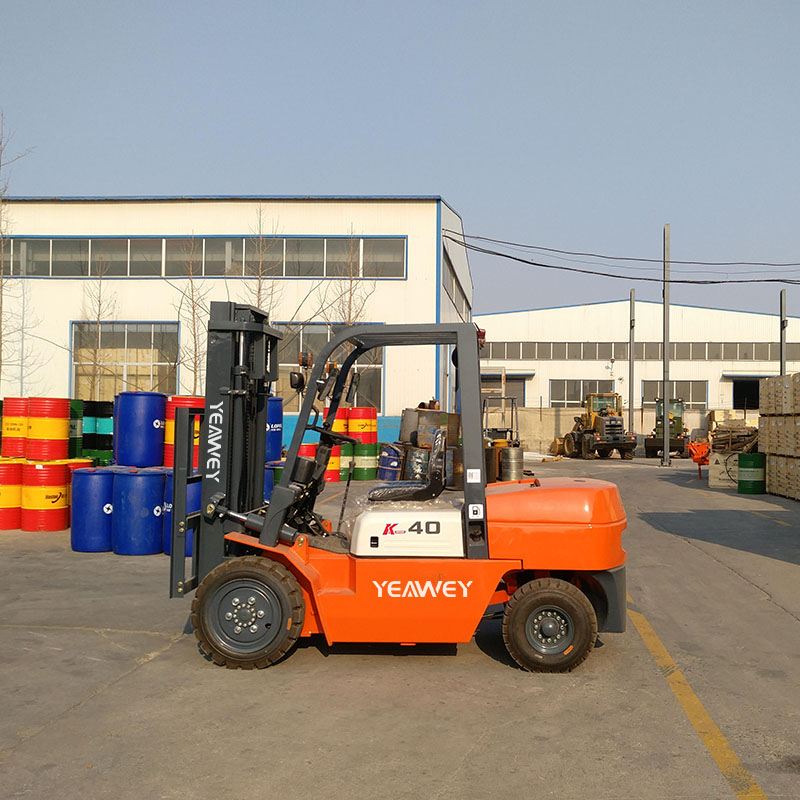

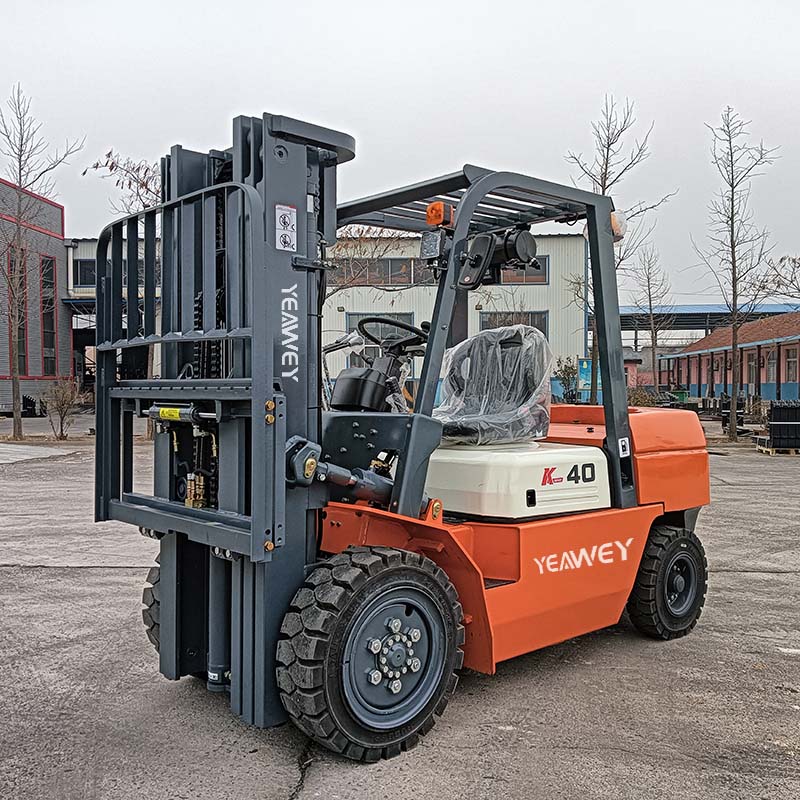

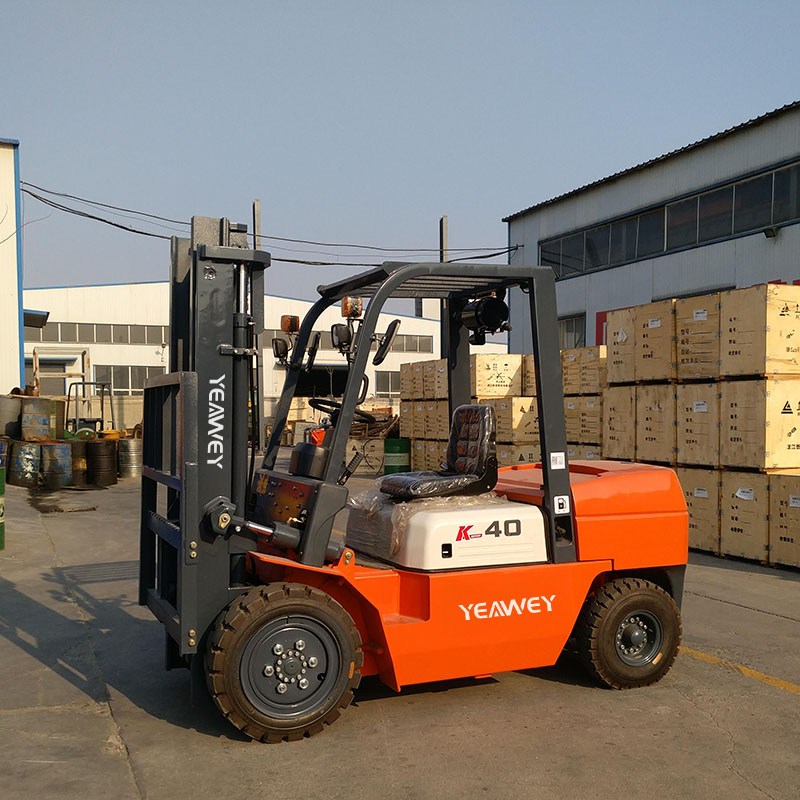

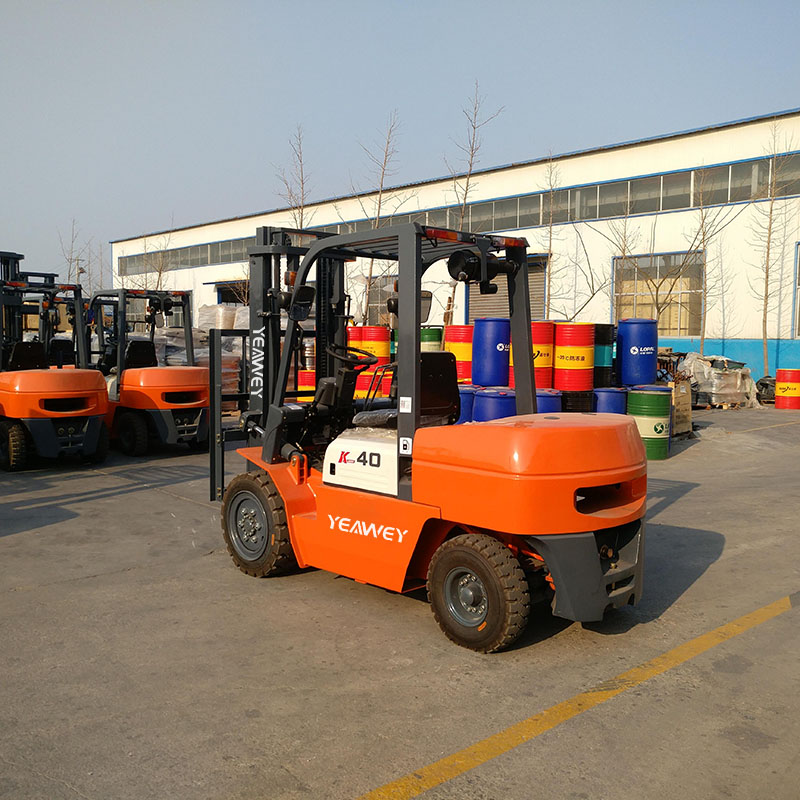

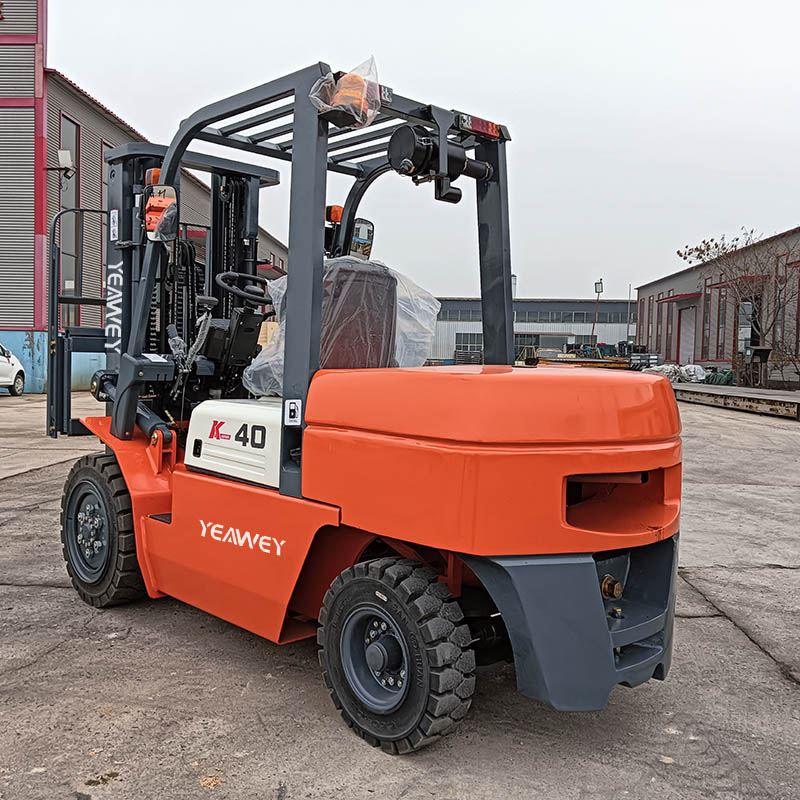

CPCD40-K1
YEAWEY
YW84272090CPCD40-K1
| Engine: | |
|---|---|
| Mast type: | |
| Lift height: | |
| Fork: | |
| Color: | |
| Quantity: | |
Steering & tires
Full hydraulic steering is labor-saving and flexible; special tires maintain stable grip even on muddy ground.
Suspension seat & vibration control
Multi-adjustable seat + suspended cab design provide dual shock absorption, enhancing comfort.
Fuel filling convenience
Quick refueling design reduces downtime; sealed structure prevents fuel spillage risks.
Key parts testing
Core components undergo 200,000-cycle tests, ensuring high reliability and lowering later maintenance costs.
| | | |
| Characteristics | ||||
| 1.01 | Manufacturer | YEAWEY | ||
| 1.02 | Model | CPCD40 | ||
| 1.03 | Load capacity | kg | 4000 | |
| 1.04 | Load center | mm | 500 | |
| 1.05 | Fuel type | Diesel | ||
| 1.06 | Drive type | Sit-on type | ||
| 2.01 | Lifting height (standard) | H3 | mm | 3000 |
| 2.02 | Mastoverall height(Fork to the ground and mast be verfical) | H1 | mm | 2200 |
| 2.03 | Max.fork lifting height(With backrest) | H4 | mm | 4250 |
| 2.04 | Free lift height | H2 | mm | 160 |
| 2.05 | Overall height(Overhead guard) | H5 | mm | 2200 |
| 2.06 | Min.ground dearance(At the chassis) | H6 | mm | 135 |
| 2.07 | Distance from the surface of the seat to the overhead guard | mm | mm | 1100 |
| 2.08 | Traction pin height | mm | mm | 330 |
| 2.09 | Backrest height(Caloulated from the surface of the fork) | mm | 1210 | |
| 2.10 | Overall length(With fork/Without fork) | (L1/L) | mm | 4020/2950 |
| 2.11 | Wheel base | Y | mm | 1900 |
| 2.12 | Front overhang | X1 | mm | 500 |
| 2.13 | Rear overhang | X2 | mm | 535 |
| 2.14 | Overall width | 2 | mm | 1380 |
| 2.15 | Tread(Front tread/Rear tread) | (3/5) | mm | 1160/1165 |
| 2.16 | Fork adjustable range(the external of the fork)(Max,/Min.) | 4 | mm | 1310/300 |
| 2.17 | Min. turning radius(Exterior) | r | mm | 2680 |
| 2.18 | Mast tilting angle(forward/rear) | deg. | deg. | 6/12 |
| 2.19 | Fork size | LxWxT | mm | 1010X150X45 |
| Dimenslons | ||||
| 3.01 | Total weight | kg | 4900 | |
| 3.02 | Weight distribution load(Front/Rear) | kg | 7291/1068 | |
| 3.03 | Weight distribution lunload(Front/Rear) | kg | 1960/2940 | |
| Dimensions | ||||
| 4.01 | Wheel number x=drive wheel(Front/Rear) | 2X/2 | ||
| 4.02 | Tire type(Front/Rear) | Pneumatic tire | ||
| 4.03 | Tire size(Front/Rear) | 250-10-12PR/7.00-12-12PR | ||
| 4.04 | Service brake | Hydraulic-foot Pedal | ||
| 4.05 | Parkingbrake | Mechanical-hand Lever | ||
| YEAWEY forklift meet all emission standards. | |||||||
| Item | Engine model | Origin | Fuel type | Truck model | Emission std | Transmissioin | Rated Power kw/rpm |
| 1 | Xinchai A495BPG | China | Diesel | 3.5-4.0t | China stgae II | China | 42/2650 |
| 2 | Xinchai A498BPG | China | Diesel | 4.0-5.0t | China stgae II | China | 45/2500 |
| 3 | Xinchai CA4D35 | China | Diesel | 5.0t | China stgae III | China | 60/2200 |
| 4 | Xichai 6110 | China | Diesel | 5.0-10.0t | China stgae II | China | 85/2000 |
| 5 | ISUZU 4JG2 | Japan | Diesel | 3.5-4.0t | Euro stage III | China | 46/2450 |
| 6 | MITSUBISHI S6S | Japan | Diesel | 5.0t | Euro stage III | China | 52/2300 |
| 7 | YANMAR 4TNE98 | Japan | Diesel | 2.0-4.0t | Euro stage III | China | 43/2300 |
| 8 | Guangqing 4Y | China | Gasoline/LPG | 2.0-4.0t | China stgae III | China | 46/2800 |
