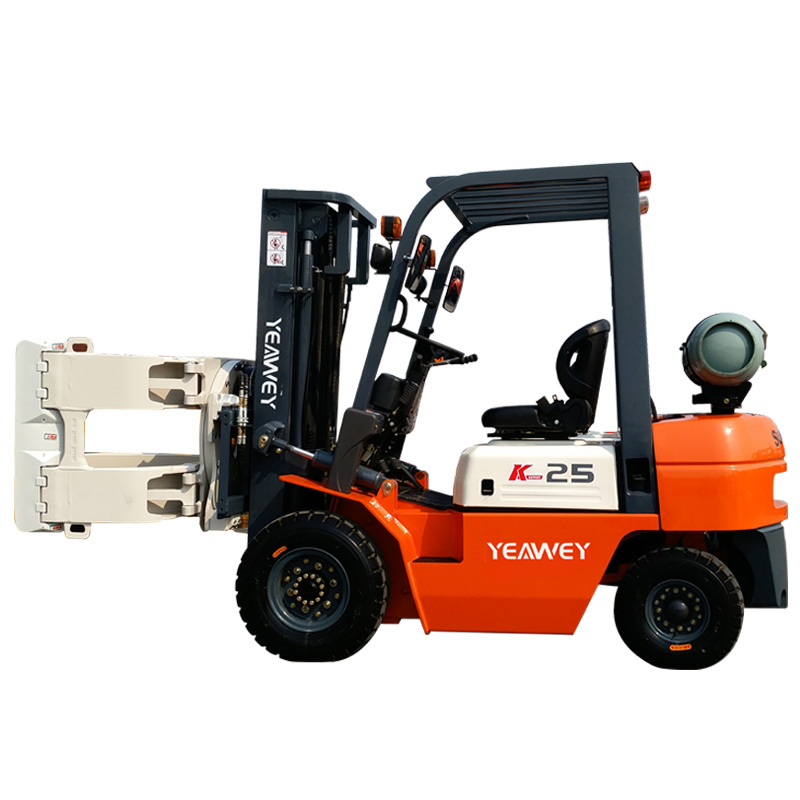

CPCG25-K1
YEAWEY
YW84272090CPCG25-K1
| Engine: | |
|---|---|
| Mast Type: | |
| Lift height: | |
| Tires: | |
| Fork: | |
| Color: | |
| Quantity: | |
Controllable Operating Costs?
LPG fuel costs 10%-15% less than gasoline. Dual-fuel switching allows flexible choices based on fuel prices, saving 8%-12% in annual fuel expenses.?
Comprehensive Safety Design?
LPG cylinders are equipped with explosion-proof valves and pressure monitoring devices; gasoline tanks feature leak-proof structures. Dual safety safeguards minimize operational risks.
Reduced Noise Levels?
Ambient noise is minimized by situating the tilting cylinder beneath the floorboard and utilizing a fully enclosed cab with sealed panels. A low-damping mechanism within the lifting system lessens mast jolts and vibrations, preventing noise from goods hitting the ground.?
Extended Service Life?
Beam rails and a robust tie bar design minimize torsional stress when handling long, lateral loads on rough surfaces. Sealed load-bearing rollers are adjustable from the outside to offset long-term wear.?
|  | | |
| Characteristics | ||||
| 1.01 | Manufacturer | YEAWEY | ||
| 1.02 | Model | CPCG25-K1 | ||
| 1.03 | Load capacity | kg | 2500 | |
| 1.04 | Load center | mm | 500 | |
| 1.05 | Fuel type | Gasoline/ LPG | ||
| 1.06 | Drive type | Sit-on type | ||
| 2.01 | Lifting height (standard) | H3 | mm | 3000 |
| 2.02 | Mastoverall height(Fork to the ground and mast be verfical) | H1 | mm | 2000 |
| 2.03 | Max.fork lifting height(With backrest) | H4 | mm | 4030 |
| 2.04 | Free lift height | H2 | mm | 150 |
| 2.05 | Overall height(Overhead guard) | H5 | mm | 2120 |
| 2.06 | Min.ground dearance(At the chassis) | H6 | mm | 115 |
| 2.07 | Distance from the surface of the seat to the overhead guard | mm | mm | 1050 |
| 2.08 | Traction pin height | mm | mm | 290 |
| 2.09 | Backrest height(Caloulated from the surface of the fork) | mm | 1000 | |
| 2.10 | Overall length(With fork/Without fork) | (L1/L) | mm | 3680/2610 |
| 2.11 | Wheel base | Y | mm | 1650 |
| 2.12 | Front overhang | X1 | mm | 465 |
| 2.13 | Rear overhang | X2 | mm | 495 |
| 2.14 | Overall width | 2 | mm | 1160 |
| 2.15 | Tread(Front tread/Rear tread) | (3/5) | mm | 970/970 |
| 2.16 | Fork adjustable range(the external of the fork)(Max,/Min.) | 4 | mm | 1030/244 |
| 2.17 | Min. turning radius(Exterior) | r | mm | 2270 |
| 2.18 | Mast tilting angle(forward/rear) | deg. | deg. | 6/12 |
| 2.19 | Fork size | LxWxT | mm | 1070X122X40 |
| Dimenslons | ||||
| 3.01 | Total weight | kg | 3650 | |
| 3.02 | Weight distribution load(Front/Rear) | kg | 5440/710 | |
| 3.03 | Weight distribution lunload(Front/Rear) | kg | 1470/2180 | |
| Dimensions | ||||
| 4.01 | Wheel number x=drive wheel(Front/Rear) | 2X/2 | ||
| 4.02 | Tire type(Front/Rear) | Pneumatic tire | ||
| 4.03 | Tire size(Front/Rear) | 28X9-15-14PR/6.5-10-10PR | ||
| 4.04 | Service brake | Hydraulic-foot Pedal | ||
| 4.05 | Parkingbrake | Mechanical-hand Lever | ||
| YEAWEY forklift meet all emission standards. | |||||||
| Item | Engine model | Origin | Fuel type | Truck model | Emission std | Transmissioin | Rated Power kw/rpm |
| 1 | Guangqing 4Y | China | Gasoline/LPG | 2.0-4.0t | China stgae III | China | 46/2800 |
| 2 | NISSAN GK25 | Japan | Gasoline/LPG | 2.0-3.5t | Euro stage III | China | 37.4/2400 |
| 3 | PSI | USA | Gasoline/LPG | 2.0-3.5t | EPA 4 | China | 46/2700 |
