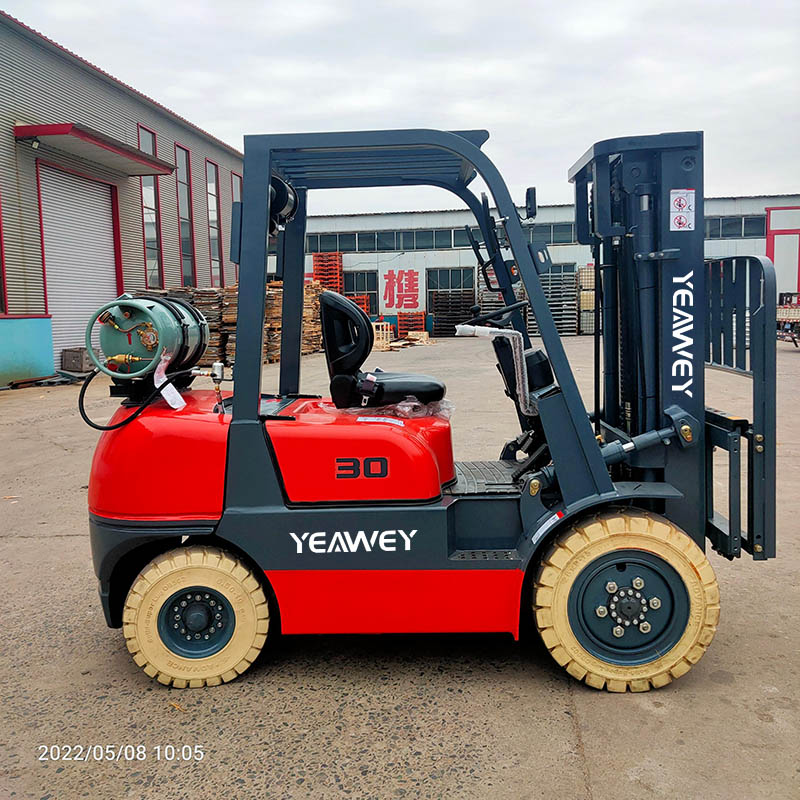

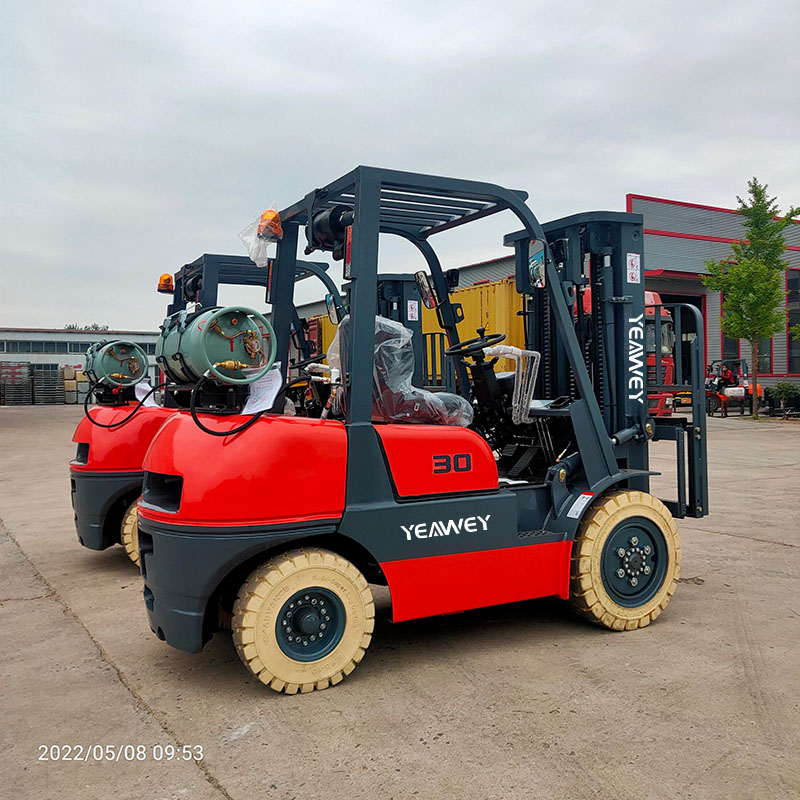

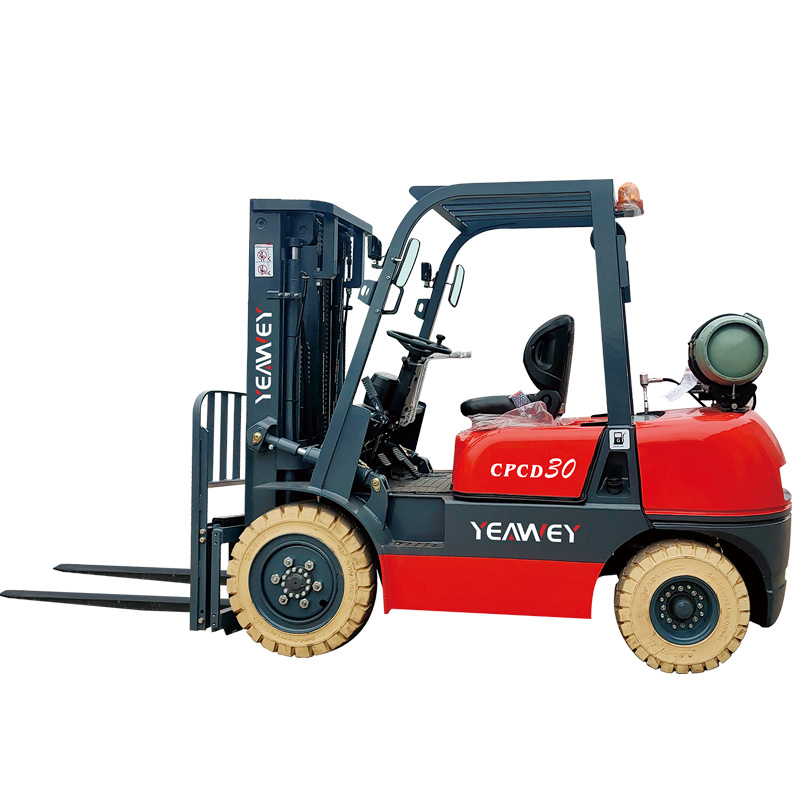

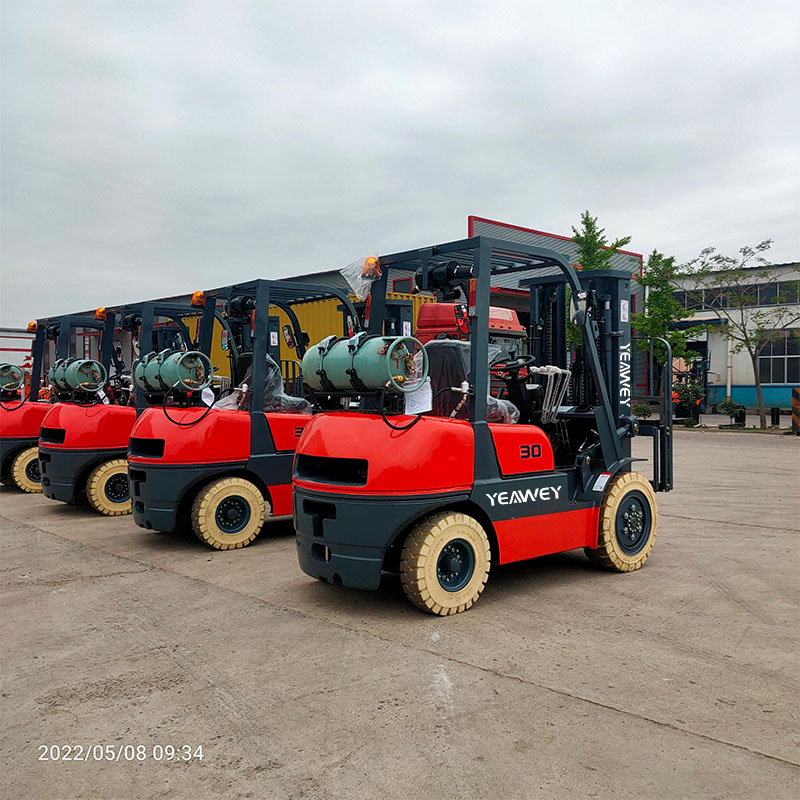

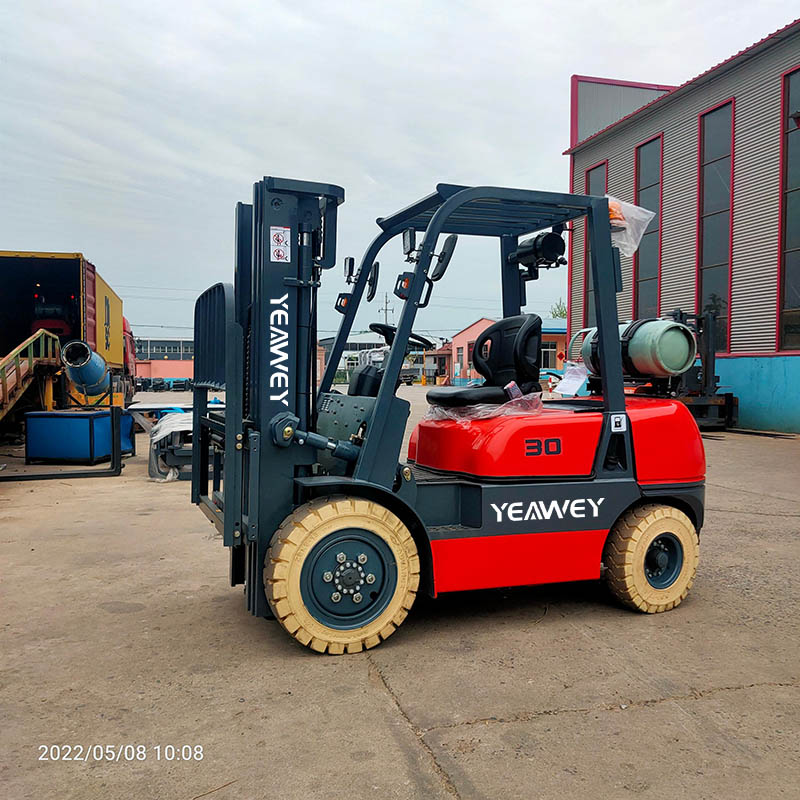

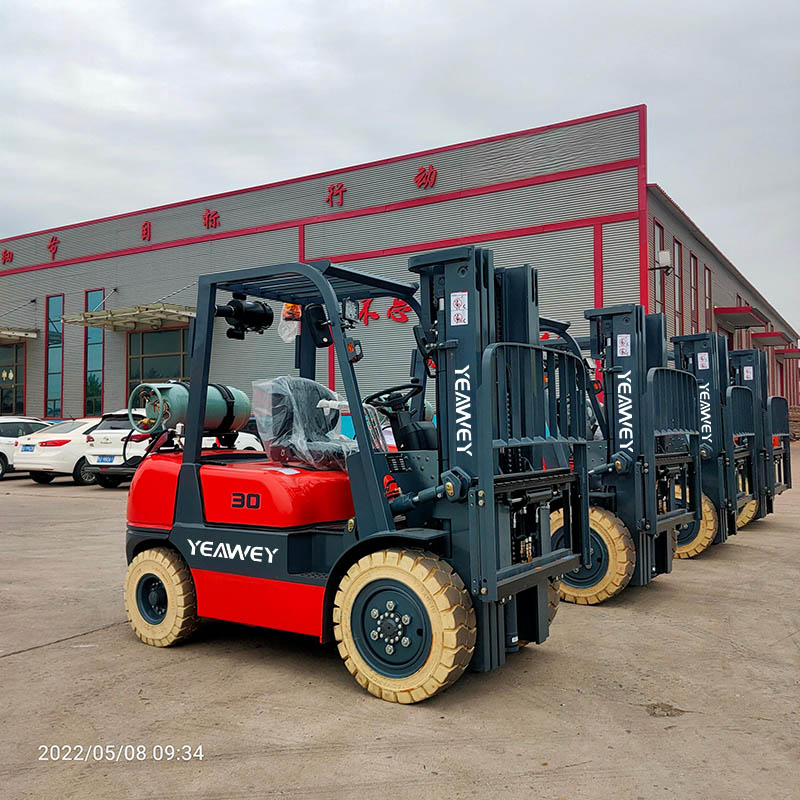

CPCG30-YT
YEAWEY
YW84272090CPCG30-YT
| engine: | |
|---|---|
| Mast type: | |
| Lift height: | |
| Tires: | |
| Fork: | |
| Color: | |
| Availability: | |
| Quantity: | |
Stable Power Output
Gasoline mode delivers 15% higher maximum power. Paired with an optimized combustion system, it provides robust power for heavy-load starts and climbing. LPG mode ensures smooth operation with low noise.
Convenient Fuel Refueling
LPG cylinders can be quickly replaced, and gasoline refueling is compatible with regular gas stations. No need for dedicated charging piles or diesel storage tanks, ideal for mobile operations.
Expanded Workspace
The foot-well area is significantly expanded through a raised steering assembly and suspension-style inching pedal. A heightened overhead guard, with its front legs crafted in a broad curved design, further enlarges the operational area.
Robust Steering Axle
An oscillating steering axle enables individual wheel obstacle traversal, keeping the machine and load steady. High-traction drive and steering tires deliver strong grip and stability, with a steering angle ranging from 54° to 78° for an ultra-compact turning circle.
![]() | ![]() | ![]() | ![]() |
| Characteristics | ||||
| 1.01 | Manufacturer | YEAWEY | ||
| 1.02 | Model | CPC30 | ||
| 1.03 | Load capacity | kg | 3000 | |
| 1.04 | Load center | mm | 500 | |
| 1.05 | Fuel type | Gasoline/ LPG | ||
| 1.06 | Drive type | Sit-on type | ||
| 2.01 | Lifting height (standard) | H3 | mm | 3000 |
| 2.02 | Mastoverall height(Fork to the ground and mast be verfical) | H1 | mm | 2070 |
| 2.03 | Max.fork lifting height(With backrest) | H4 | mm | 4217 |
| 2.04 | Free lift height | H2 | mm | 155 |
| 2.05 | Overall height(Overhead guard) | H5 | mm | 2140 |
| 2.06 | Min.ground dearance(At the chassis) | H6 | mm | 135 |
| 2.07 | Distance from the surface of the seat to the overhead guard | mm | mm | 1050 |
| 2.08 | Traction pin height | mm | mm | 310 |
| 2.09 | Backrest height(Caloulated from the surface of the fork) | mm | 1182 | |
| 2.10 | Overall length(With fork/Without fork) | (L1/L) | mm | 3814/2744 |
| 2.11 | Wheel base | Y | mm | 1750 |
| 2.12 | Front overhang | X1 | mm | 478 |
| 2.13 | Rear overhang | X2 | mm | 520 |
| 2.14 | Overall width | 2 | mm | 1225 |
| 2.15 | Tread(Front tread/Rear tread) | (3/5) | mm | 1000/970 |
| 2.16 | Fork adjustable range(the external of the fork)(Max,/Min.) | 4 | mm | 1060/250 |
| 2.17 | Min. turning radius(Exterior) | r | mm | 2400 |
| 2.18 | Mast tilting angle(forward/rear) | deg. | deg. | 6/12 |
| 2.19 | Fork size | LxWxT | mm | 1070X125X45 |
| Dimenslons | ||||
| 3.01 | Total weight | kg | 4270 | |
| 3.02 | Weight distribution load(Front/Rear) | kg | 6430/840 | |
| 3.03 | Weight distribution lunload(Front/Rear) | kg | 1750/2520 | |
| Dimensions | ||||
| 4.01 | Wheel number x=drive wheel(Front/Rear) | 2X/2 | ||
| 4.02 | Tire type(Front/Rear) | Pneumatic tire | ||
| 4.03 | Tire size(Front/Rear) | 28X9-15-14PR/6.5-10-10PR | ||
| 4.04 | Service brake | Hydraulic-foot Pedal | ||
| 4.05 | Parkingbrake | Mechanical-hand Lever | ||
| YEAWEY forklift meet all emission standards. | |||||||
| Item | Engine model | Origin | Fuel type | Truck model | Emission std | Transmissioin | Rated Power kw/rpm |
| 1 | Guangqing 4Y | China | Gasoline/LPG | 2.0-4.0t | China stgae III | China | 46/2800 |
| 2 | NISSAN GK25 | Japan | Gasoline/LPG | 2.0-3.5t | Euro stage III | China | 37.4/2400 |
| 3 | PSI | USA | Gasoline/LPG | 2.0-3.5t | EPA 4 | China | 46/2700 |
