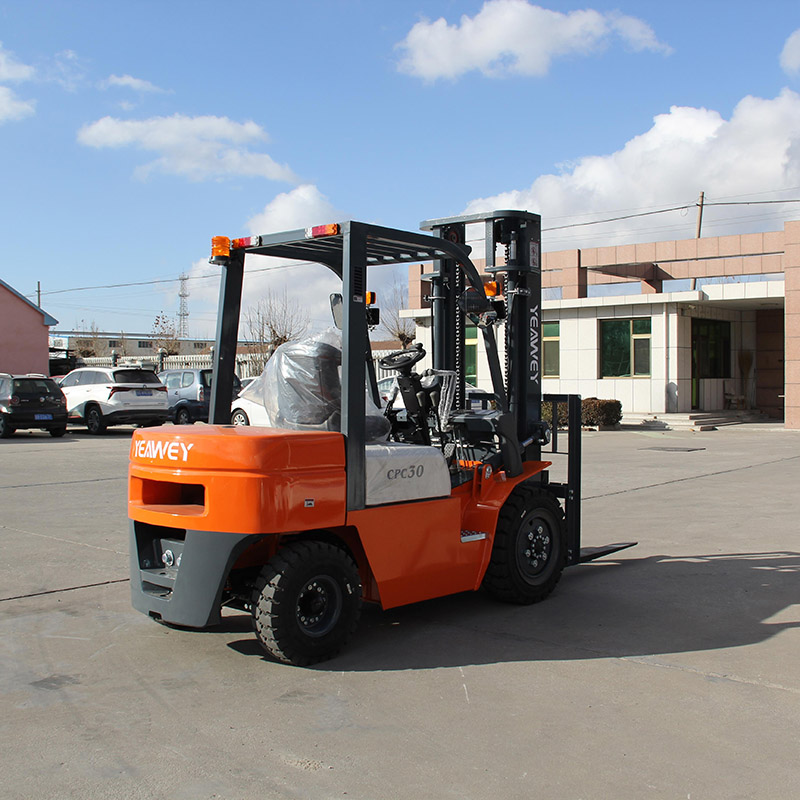

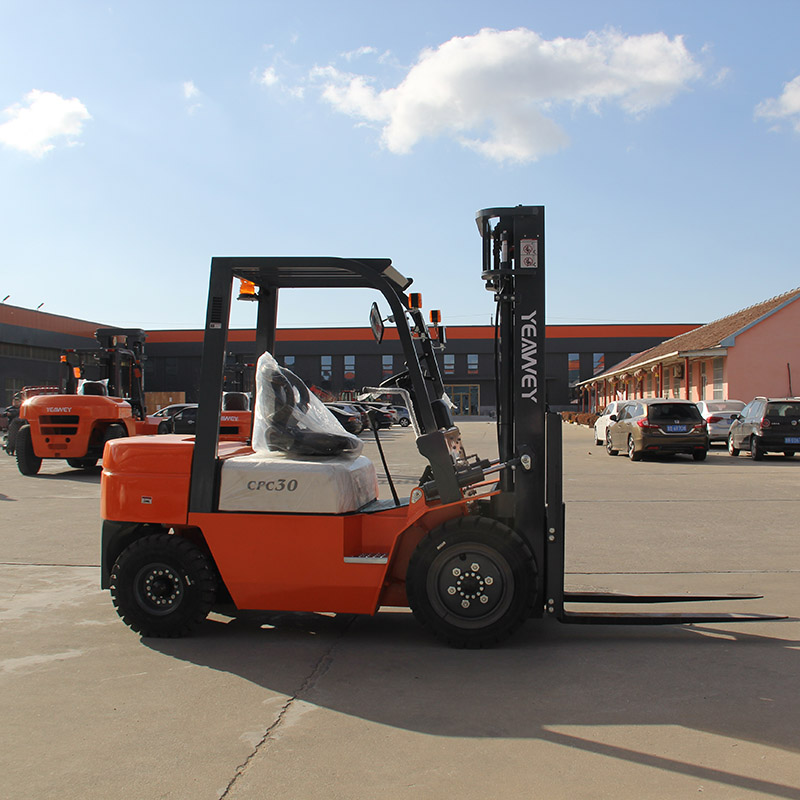

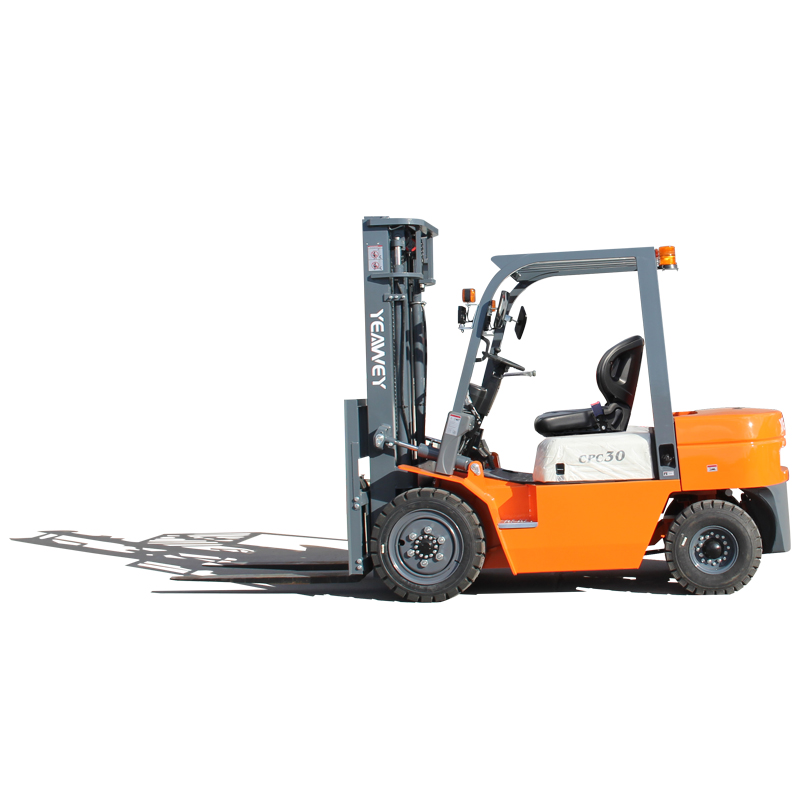

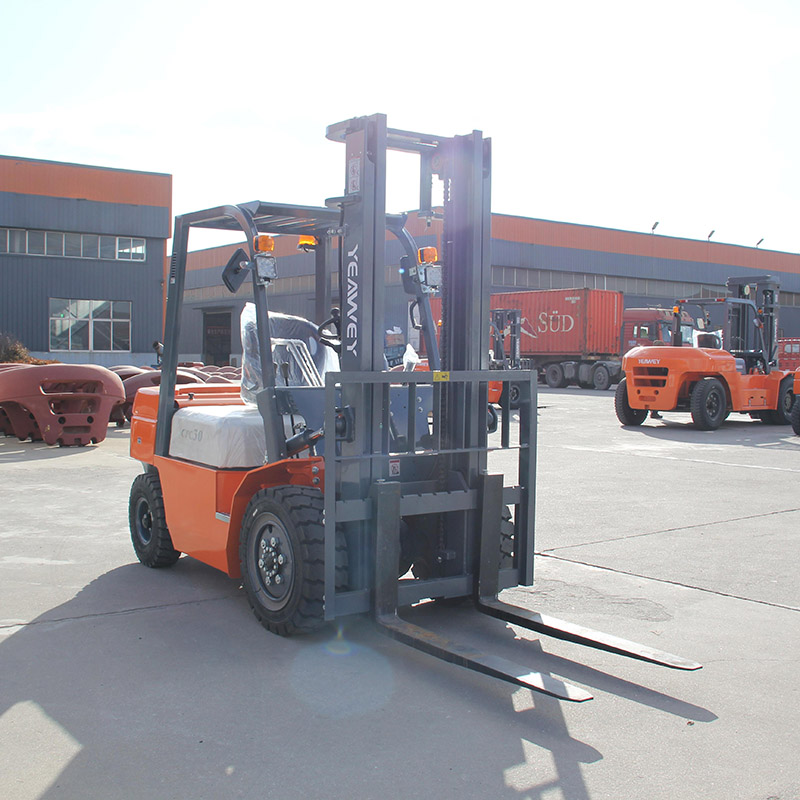

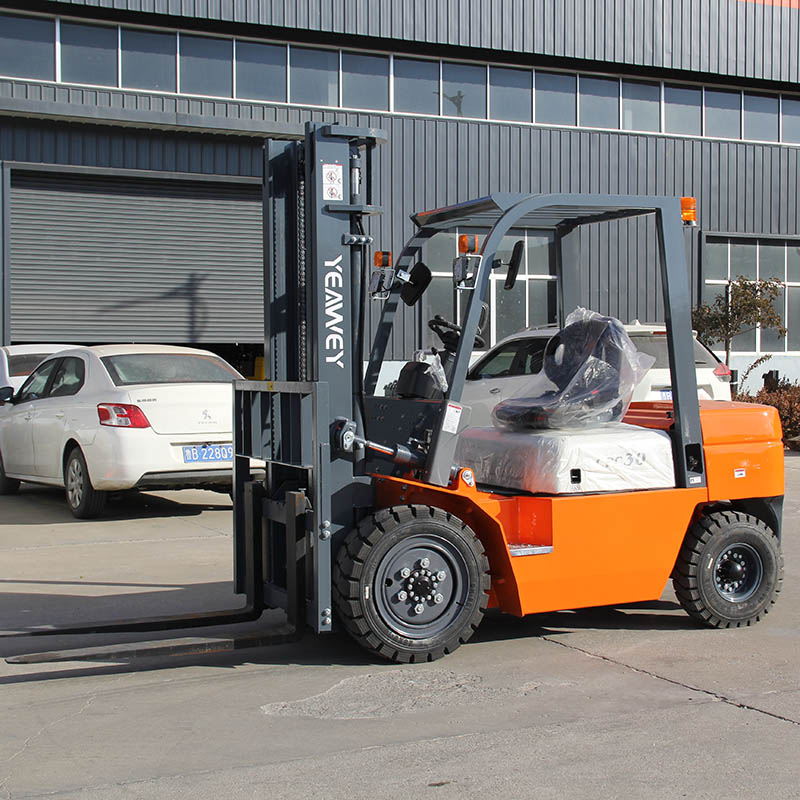

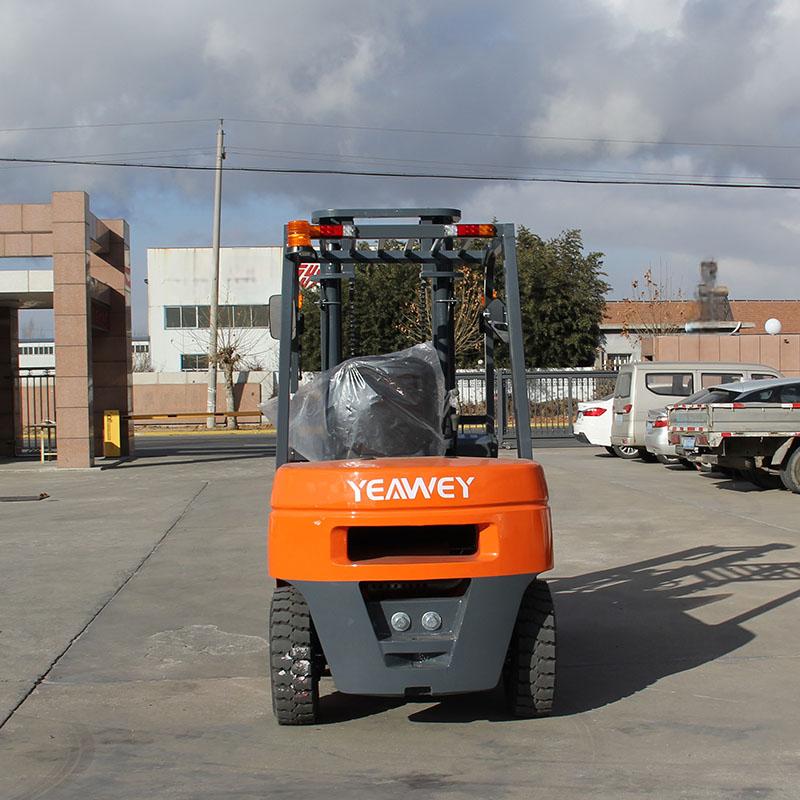

CPCD30-K1
YEAWEY
YW84272090CPCD30-K1
| Engine: | |
|---|---|
| Mast type: | |
| Lift height: | |
| Tires: | |
| Fork: | |
| Color: | |
| Quantity: | |
Powerful Power Output, Efficient Operation Guarantee
Equipped with durable Xinchai C490BPG diesel engine, it delivers a maximum output of 40kW and torque of 167N・m, easily handling the rapid lifting and transportation of 3-ton full loads. Even on muddy or sloped terrain, it maintains stable power output with quick acceleration response, significantly reducing operation cycle time, meeting high-intensity logistics turnover needs and improving overall work efficiency.
Strong Heavy-Load Stability, High Safety Factor
Featuring a long wheelbase (1700mm) and casted counterweight, along with widened fork spacing (adjustable to 1200mm), it ensures lateral and longitudinal stability when lifting 3-ton loads. The hydraulic system is equipped with an overload protection device that automatically cuts off lifting actions when the load exceeds the rated value, effectively preventing tipping accidents and providing double protection for operators and goods.(Optional)
Excellent Fuel Economy, Low Operating Costs
Adopting high-pressure common rail fuel injection technology, the comprehensive fuel consumption per 100km is as low as 7.5L, saving more than 15% fuel compared to traditional models. The engine idle speed intelligent adjustment function automatically matches the speed according to the load, reducing fuel consumption in non-operating status. The long oil change interval (500 hours) reduces maintenance frequency, lowering enterprise operating costs from multiple dimensions.
Reinforced Safety Design, All-Round Protection
Equipped with anti-fall fork speed limit device and driver seat sensor system, the fork automatically locks and cannot lift when the operator leaves the seat. The front windshield uses tempered explosion-proof glass, and the top guard passes ISO 6055 collision test, able to withstand 1.5 times the impact force of its own weight. The combination of reversing radar and LED warning lights enhances the surrounding warning effect in the working environment, reducing collision risks.
| | | |
| Characteristics | ||||
| 1.01 | Manufacturer | YEAWEY | ||
| 1.02 | Model | CPCD30 | ||
| 1.03 | Load capacity | kg | 3000 | |
| 1.04 | Load center | mm | 500 | |
| 1.05 | Fuel type | Diesel | ||
| 1.06 | Drive type | Sit-on type | ||
| 2.01 | Lifting height (standard) | H3 | mm | 3000 |
| 2.02 | Mastoverall height(Fork to the ground and mast be verfical) | H1 | mm | 2070 |
| 2.03 | Max.fork lifting height(With backrest) | H4 | mm | 4217 |
| 2.04 | Free lift height | H2 | mm | 155 |
| 2.05 | Overall height(Overhead guard) | H5 | mm | 2140 |
| 2.06 | Min.ground dearance(At the chassis) | H6 | mm | 135 |
| 2.07 | Distance from the surface of the seat to the overhead guard | mm | mm | 1050 |
| 2.08 | Traction pin height | mm | mm | 310 |
| 2.09 | Backrest height(Caloulated from the surface of the fork) | mm | 1182 | |
| 2.10 | Overall length(With fork/Without fork) | (L1/L) | mm | 3814/2744 |
| 2.11 | Wheel base | Y | mm | 1750 |
| 2.12 | Front overhang | X1 | mm | 478 |
| 2.13 | Rear overhang | X2 | mm | 520 |
| 2.14 | Overall width | 2 | mm | 1225 |
| 2.15 | Tread(Front tread/Rear tread) | (3/5) | mm | 1000/970 |
| 2.16 | Fork adjustable range(the external of the fork)(Max,/Min.) | 4 | mm | 1060/250 |
| 2.17 | Min. turning radius(Exterior) | r | mm | 2400 |
| 2.18 | Mast tilting angle(forward/rear) | deg. | deg. | 6/12 |
| 2.19 | Fork size | LxWxT | mm | 1070X125X45 |
| Dimenslons | ||||
| 3.01 | Total weight | kg | 4270 | |
| 3.02 | Weight distribution load(Front/Rear) | kg | 6430/840 | |
| 3.03 | Weight distribution lunload(Front/Rear) | kg | 1750/2520 | |
| Dimensions | ||||
| 4.01 | Wheel number x=drive wheel(Front/Rear) | 2X/2 | ||
| 4.02 | Tire type(Front/Rear) | Pneumatic tire | ||
| 4.03 | Tire size(Front/Rear) | 28X9-15-14PR/6.5-10-10PR | ||
| 4.04 | Service brake | Hydraulic-foot Pedal | ||
| 4.05 | Parkingbrake | Mechanical-hand Lever | ||
| YEAWEY forklift meet all emission standards. | |||||||
| Item | Engine model | Origin | Fuel type | Truck model | Emission std | Transmissioin | Rated Power kw/rpm |
| 1 | Xinchai NC485 | China | Diesel | 1.5-1.8t | China stgae II | China | 30/2600 |
| 2 | Xinchai C490BPG | China | Diesel | 2.0-3.5t | China stgae II | China | 40/2650 |
| 3 | Xinchai A495BPG | China | Diesel | 3.5-4.0t | China stgae II | China | 42/2650 |
| 4 | Xinchai 3E22YG51 | China | Diesel | 2.0-3.5t | Euro stage V | China | 44.8/2400 |
| 5 | ISUZU C240 | Japan | Diesel | 2.0-3.5t | Euro stage III | China | 35.4/2500 |
| 6 | ISUZU 4JG2 | Japan | Diesel | 3.5-4.0t | Euro stage III | China | 46/2450 |
| 7 | MITSUBISHI S4S | Japan | Diesel | 2.0-3.5t | Euro stage III | China | 35.3/2250 |
| 8 | YANMAR 4TNE98 | Japan | Diesel | 2.0-4.0t | Euro stage III | China | 43/2300 |
| 9 | Commuis | China | Diesel | 2.0-3.5t | EPA 4 | China | 43/2500 |
