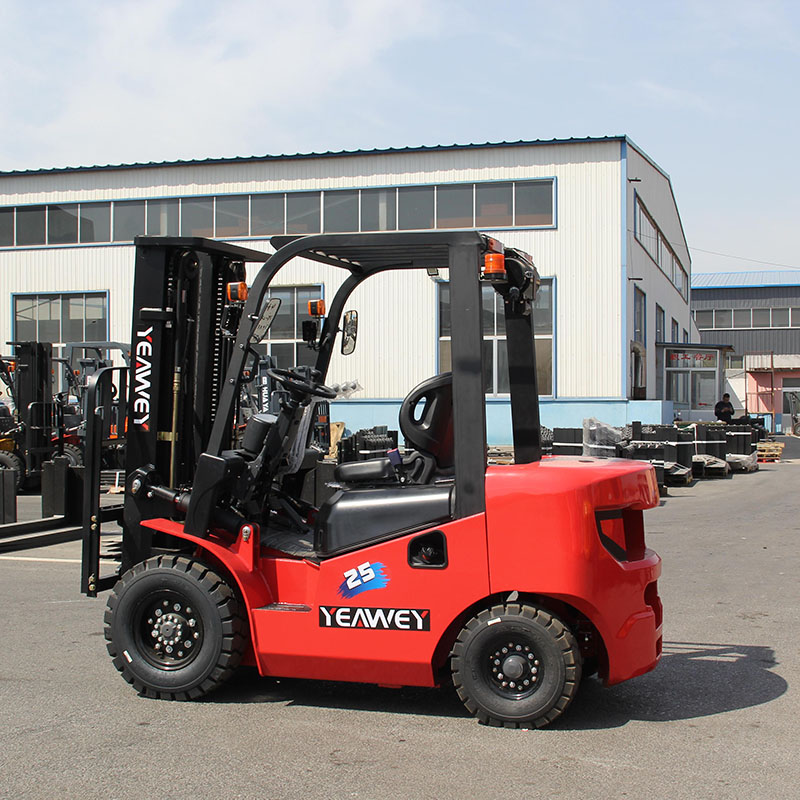

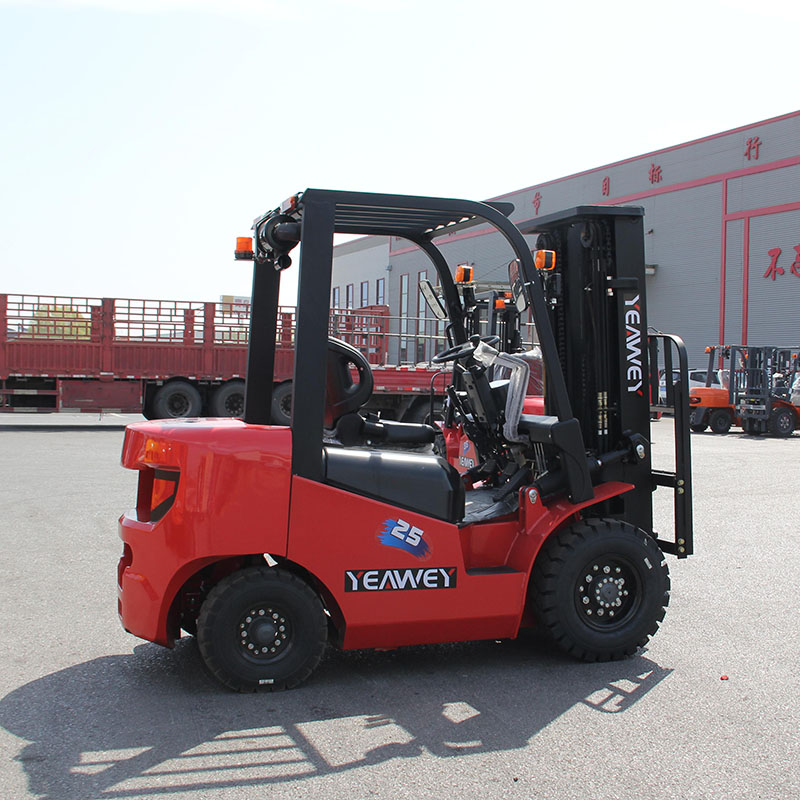

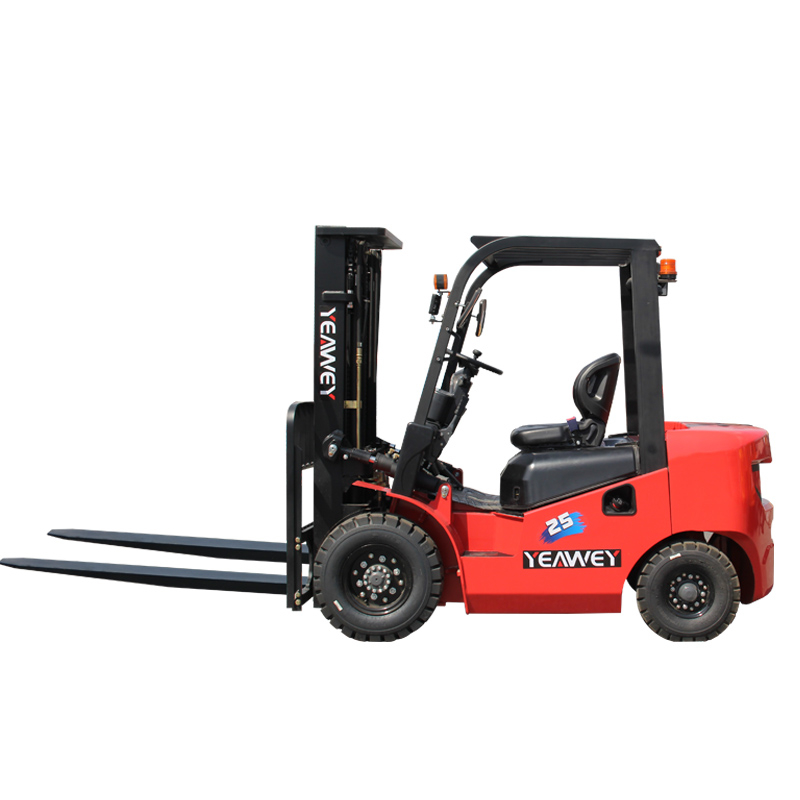

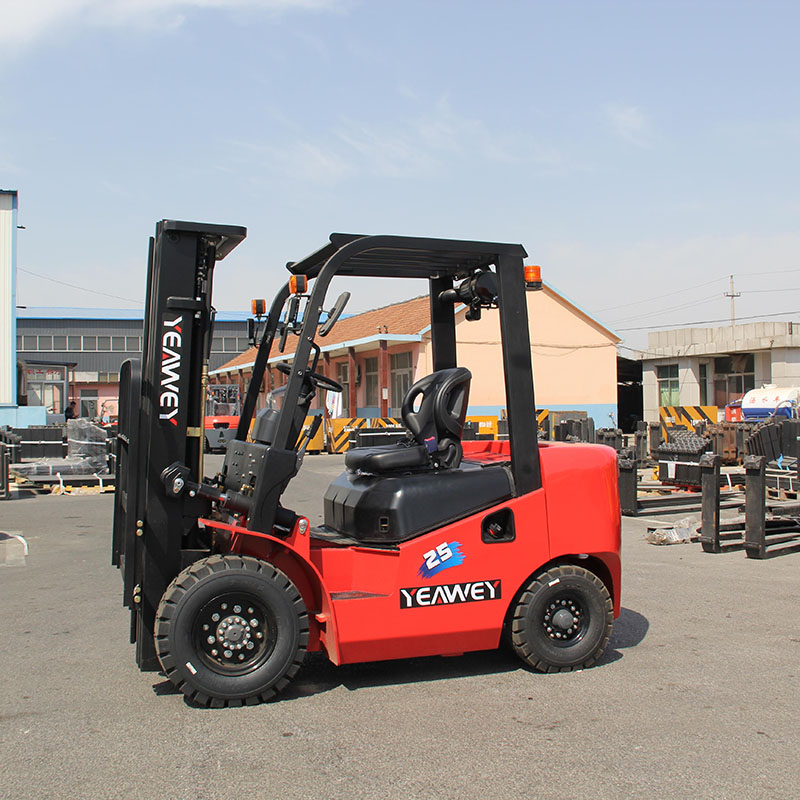

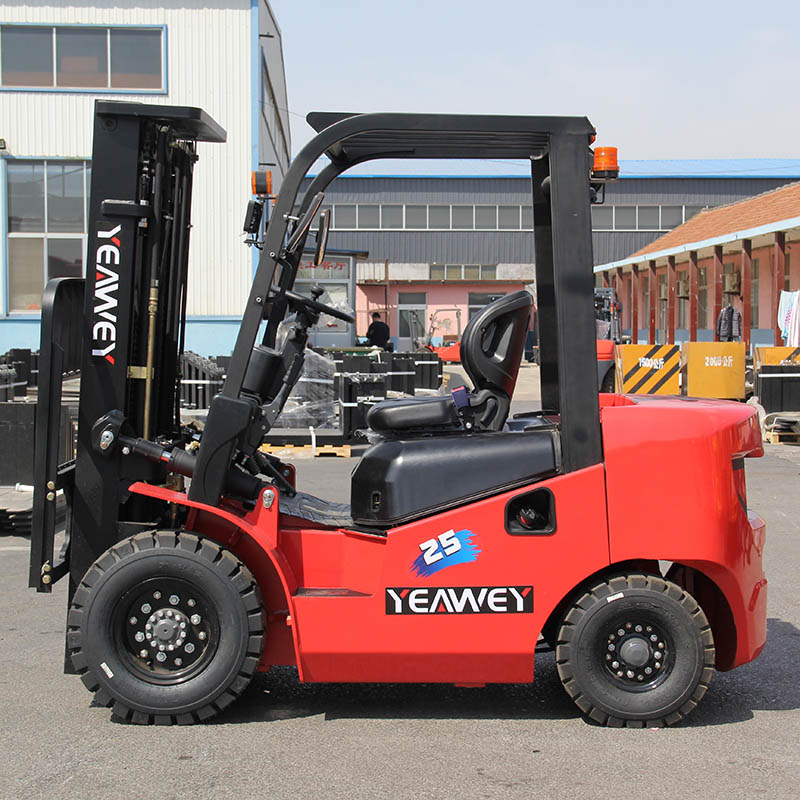

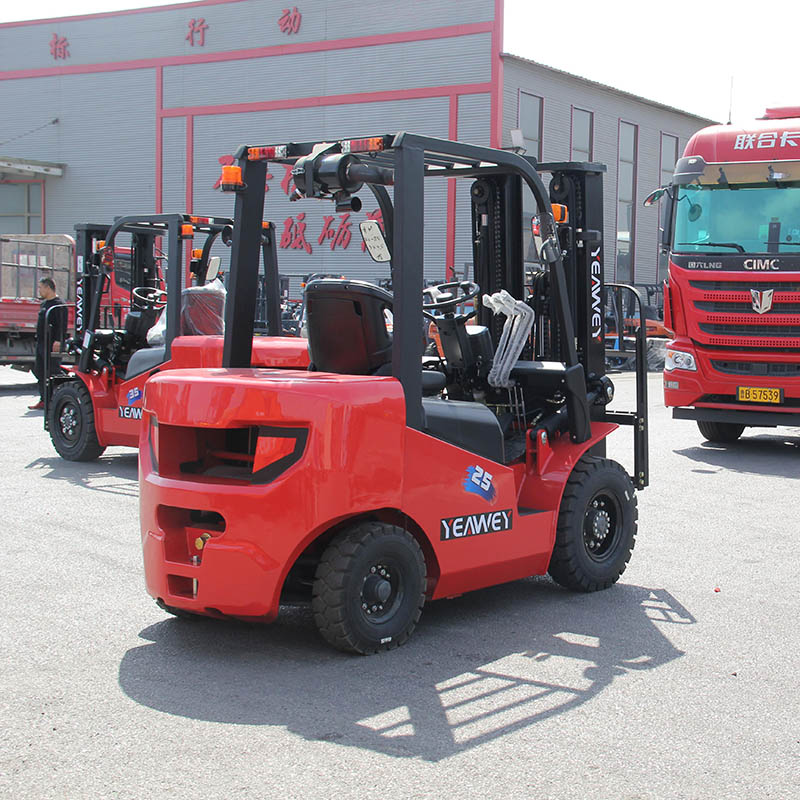

New design 2.5Ton automatic diesel fork lifter for workshop

Name: New design 2.5Ton automatic diesel fork lifter for workshop
Brand: YEAWEY
SKU: 552679117
Rating: 5.0 (20 reviews)

The 3-ton diesel forklift boasts strong power, with optional 490 high-pressure common rail or 493VP pump engines, ensuring green environmental protection. It is equipped with a new material canopy for sunshade and rain protection, and a high-grade toolbox, adding durability and aesthetics.

Model:
CPCD25-K2
Brand:
YEAWEY
Code:
YW84272090CPCD25-K2

Quantity:
Engine:	Chinese Xinchai C490 MITSUBISHI S4S
Mast type:	2 stage 3 stage FFL
Lift height:	3m 4m 4.5m 4.7m 5-6.5m
Tires:	Pneumatic Solid
Fork:	1220-1520mm 1820-2000mm
Color:	Orange Red Yellow
Availability:





Inquire Add to Basket

Product Description

Product Parameters

Download documents

Application scenario(s)

Enhanced operator view

Ultra-wide mast reduces visual obstruction; sloped rear counterweight widens rear vision, keeping the operating environment in full view.

Hydraulic system

Upgraded constant displacement pump load sensing system enables more efficient lifting, stable oil temperature, and extended system life.

Suspension seat

Multi-directional adjustment adapts to different operators, with excellent vibration absorption to prevent fatigue during long shifts.

Durability of key parts

Reinforced steer axle and frame have improved wear resistance, suitable for high-intensity operations.

Characteristics
1.01	Manufacturer			YEAWEY
1.02	Model			CPCD25
1.03	Load capacity		kg	2500
1.04	Load center		mm	500
1.05	Fuel type			Diesel
1.06	Drive type			Sit-on type
2.01	Lifting height (standard)	H3	mm	3000
2.02	Mastoverall height(Fork to the ground and mast be verfical)	H1	mm	2000
2.03	Max.fork lifting height(With backrest)	H4	mm	4030
2.04	Free lift height	H2	mm	150
2.05	Overall height(Overhead guard)	H5	mm	2120
2.06	Min.ground dearance(At the chassis)	H6	mm	115
2.07	Distance from the surface of the seat to the overhead guard	mm	mm	1050
2.08	Traction pin height	mm	mm	290
2.09	Backrest height(Caloulated from the surface of the fork)		mm	1000
2.10	Overall length(With fork/Without fork)	(L1/L)	mm	3680/2610
2.11	Wheel base	Y	mm	1650
2.12	Front overhang	X1	mm	465
2.13	Rear overhang	X2	mm	495
2.14	Overall width	2	mm	1160
2.15	Tread(Front tread/Rear tread)	(3/5)	mm	970/970
2.16	Fork adjustable range(the external of the fork)(Max,/Min.)	4	mm	1030/244
2.17	Min. turning radius(Exterior)	r	mm	2270
2.18	Mast tilting angle(forward/rear)	deg.	deg.	6/12
2.19	Fork size	LxWxT	mm	1070X122X40
Dimenslons
3.01	Total weight		kg	3650
3.02	Weight distribution load(Front/Rear)		kg	5440/710
3.03	Weight distribution lunload(Front/Rear)		kg	1470/2180
Dimensions
4.01	Wheel number x=drive wheel(Front/Rear)			2X/2
4.02	Tire type(Front/Rear)			Pneumatic tire
4.03	Tire size(Front/Rear)			28X9-15-14PR/6.5-10-10PR
4.04	Service brake			Hydraulic-foot Pedal
4.05	Parkingbrake			Mechanical-hand Lever

YEAWEY forklift meet all emission standards.
Item	Engine model	Origin	Fuel type	Truck model	Emission std	Transmissioin	Rated Power kw/rpm
1	Xinchai NC485	China	Diesel	1.5-1.8t	China stgae II	China	30/2600
2	Xinchai C490BPG	China	Diesel	2.0-3.5t	China stgae II	China	40/2650
3	Xinchai A495BPG	China	Diesel	3.5-4.0t	China stgae II	China	42/2650
4	Xinchai 3E22YG51	China	Diesel	2.0-3.5t	Euro stage V	China	44.8/2400
5	ISUZU C240	Japan	Diesel	2.0-3.5t	Euro stage III	China	35.4/2500
6	ISUZU 4JG2	Japan	Diesel	3.5-4.0t	Euro stage III	China	46/2450
7	MITSUBISHI S4S	Japan	Diesel	2.0-3.5t	Euro stage III	China	35.3/2250
8	YANMAR 4TNE98	Japan	Diesel	2.0-4.0t	Euro stage III	China	43/2300
9	Commuis	China	Diesel	2.0-3.5t	EPA 4	China	43/2500

1.5-5

CPCD25-K2.pdf

Damage-Free Handling in German Air-Conditioner Factory — YEAWEY FD30 Euro V Diesel Forklift with Carton Clamp

Client：

A leading German air-conditioner manufacturer (annual output: 500,000 energy-efficient central AC units; strict adherence to EU environmental and safety standards).

Scenario：

Finished air-conditioner units are packaged in cartons (3 tons per pallet, 20 units per pallet). The forklift must transfer units from the automated production line to a smart racking warehouse (2.5m-wide aisles). Key challenges: winter warehouse temperatures drop to 5℃, and the factory requires seamless integration with the WMS (Warehouse Management System).

Challenges：

Emission Compliance: EU Stage V regulations prohibit non-compliant engines; electric forklifts fail to meet 8-hour continuous operation under low-temperature conditions.

Carton Protection: Traditional forks crush carton edges (monthly damage: 30+ units, €200,000 annual loss).

Smart Integration: Manual barcode scanning delays WMS data sync; traditional forklifts lack IoT connectivity.

Low-Temperature Performance: Hydraulic oil thickens in cold weather, causing jerky movements and 15% winter failure rates.

Solutions：

EU Stage V Engine: Deployed YEAWEY FD30 with a Euro V-compliant diesel engine (DPF + SCR system), certified by TÜV for NOₓ reduction (1.2 tons/year) and particulate matter control.

Custom Carton Clamp: Equipped with 30mm soft rubber-coated clamps (clamping force: 0–500N adjustable) + ±100mm fork side-shift, ensuring zero carton deformation.

IoT Connectivity: Integrated on-board IoT terminal to auto-sync with WMS: real-time pallet location tracking, job data upload (no manual scanning).

Low-Temperature Adaptation:

Heated cabin (3-minute warm-up to 20℃ at 5℃ ambient).

Low-viscosity hydraulic oil (-15℃ flow ability) + ore-heating system for smooth operations.

Safety Enhancement: Laser collision avoidance system slows the forklift in 2.5m aisles, preventing rack impacts.

Results：

Emission Compliance: Passed TÜV audits; eligible for EU green incentives (€8,000/unit subsidy).

Zero Carton Damage: Damage rate dropped from 1.2% to 0.1% (annual loss reduction: €180,000).

Efficiency Boost: IT-enabled auto-data sync cut cycle time from 90s to 60s per pallet; daily throughput +50%.

Winter Reliability: Low-temperature failure rate fell from 15% to 2% (annual maintenance cost saving: €45,000).

Smart Scalability: Became a "mobile node" in the smart warehouse, supporting a planned 20% capacity expansion (to 600,000 units/year) without bottlenecks.
