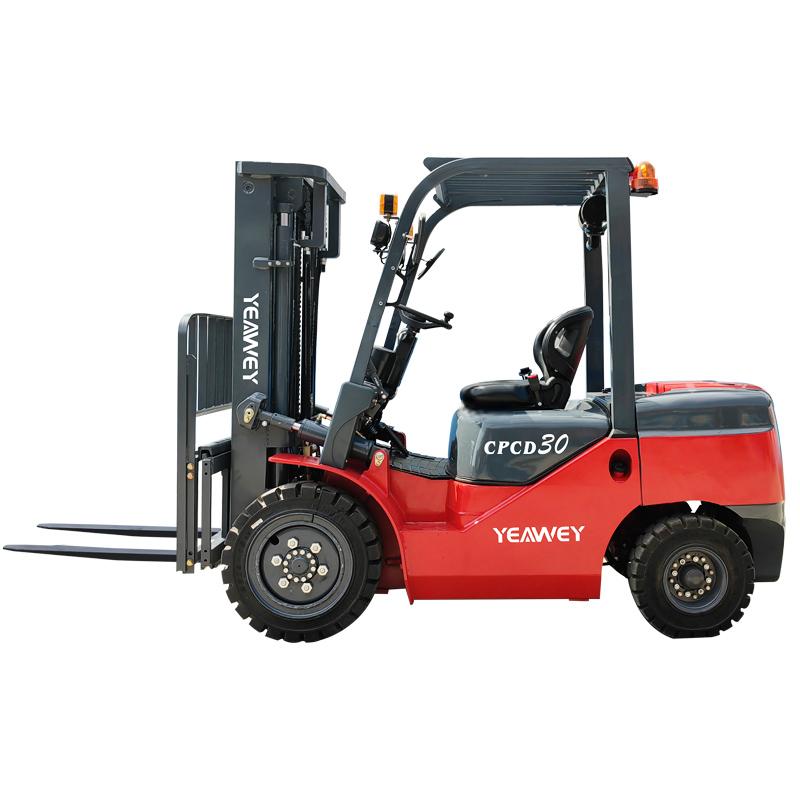

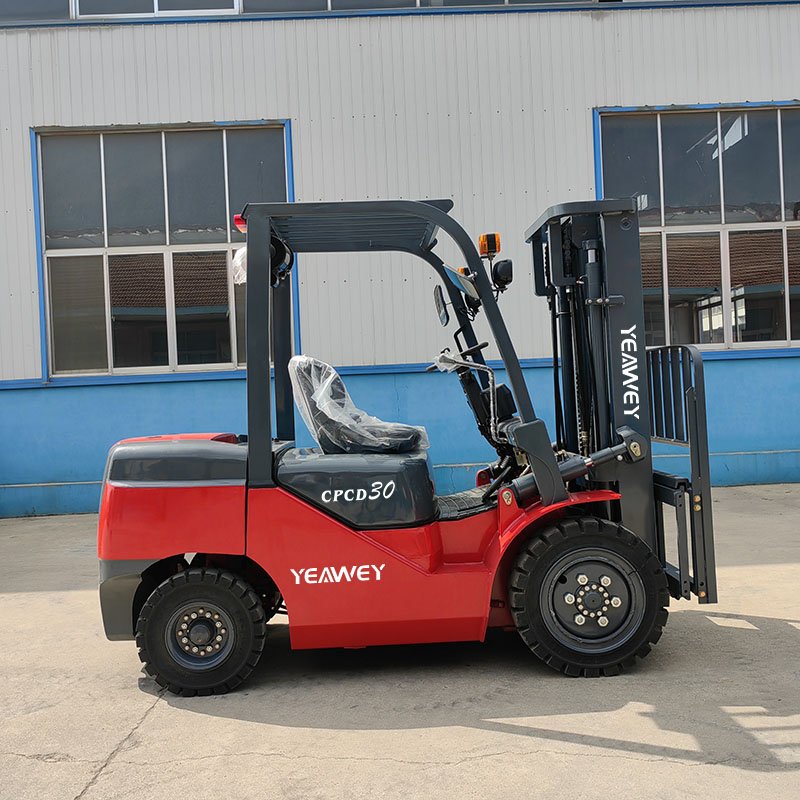

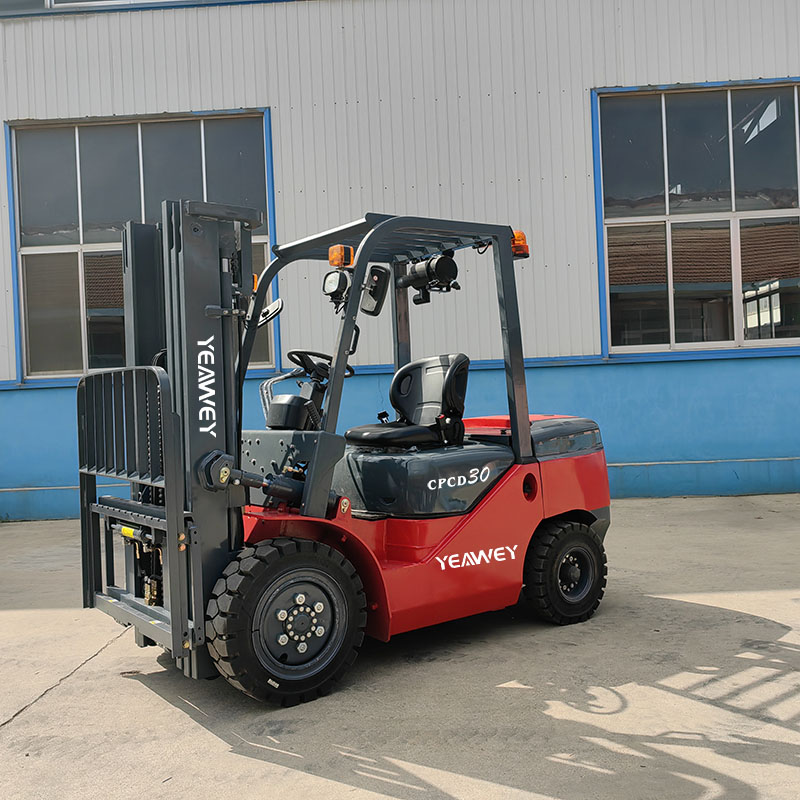

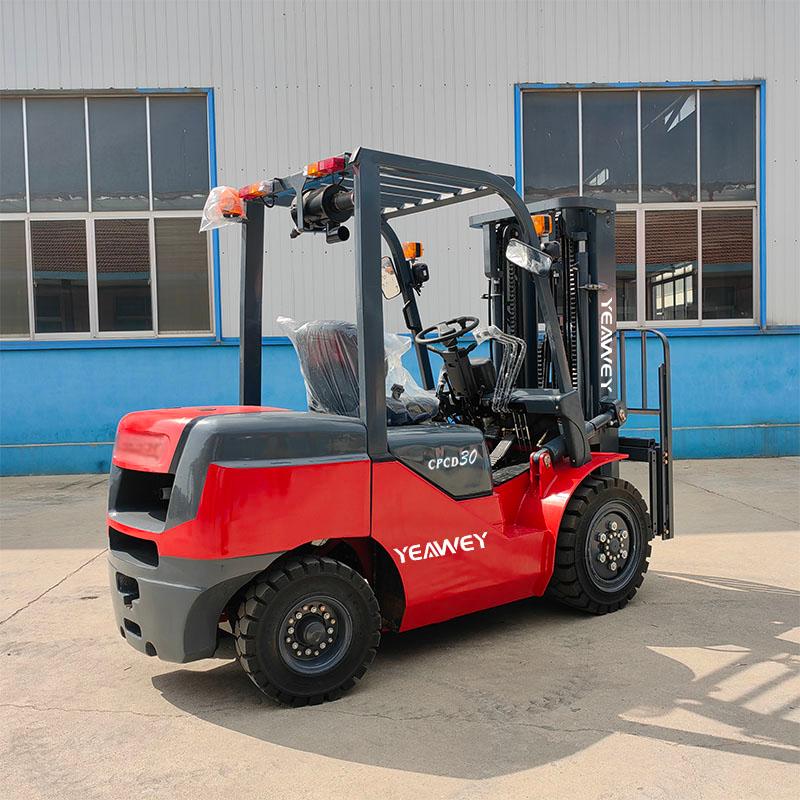

CPCD30-YG
YEAWEY
YW84272090CPCD30-YG
| engine: | |
|---|---|
| Mast type: | |
| Lift height: | |
| Tires: | |
| Fork: | |
| Color: | |
| Quantity: | |
Ergonomic Design
The manual gear lever fits the hand shape and is positioned reasonably for effortless operation; independent dual rear lights and warning lights are easy to identify and maintain.
Optimized Visibility

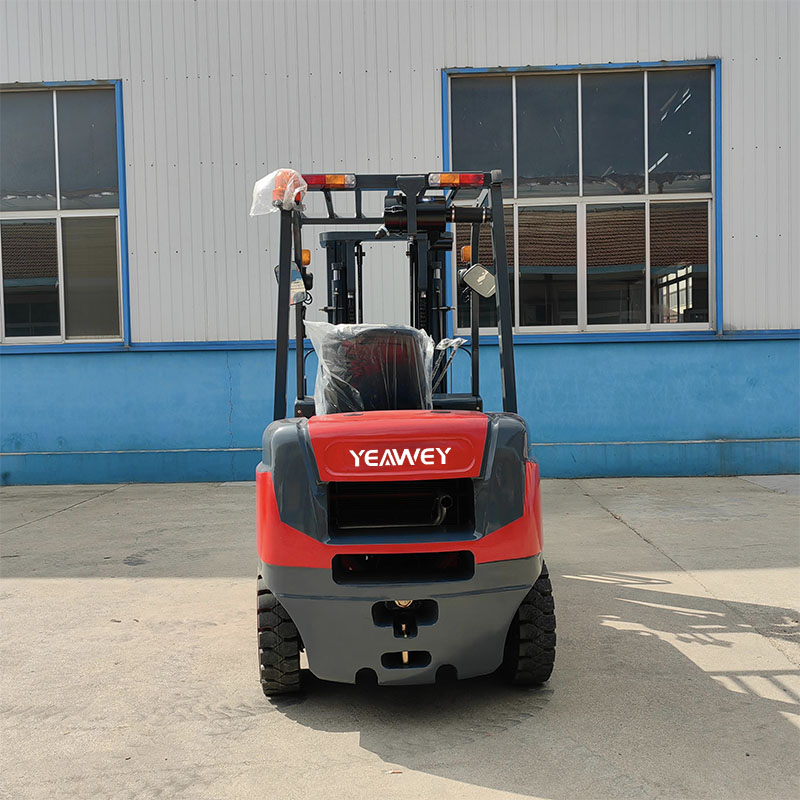

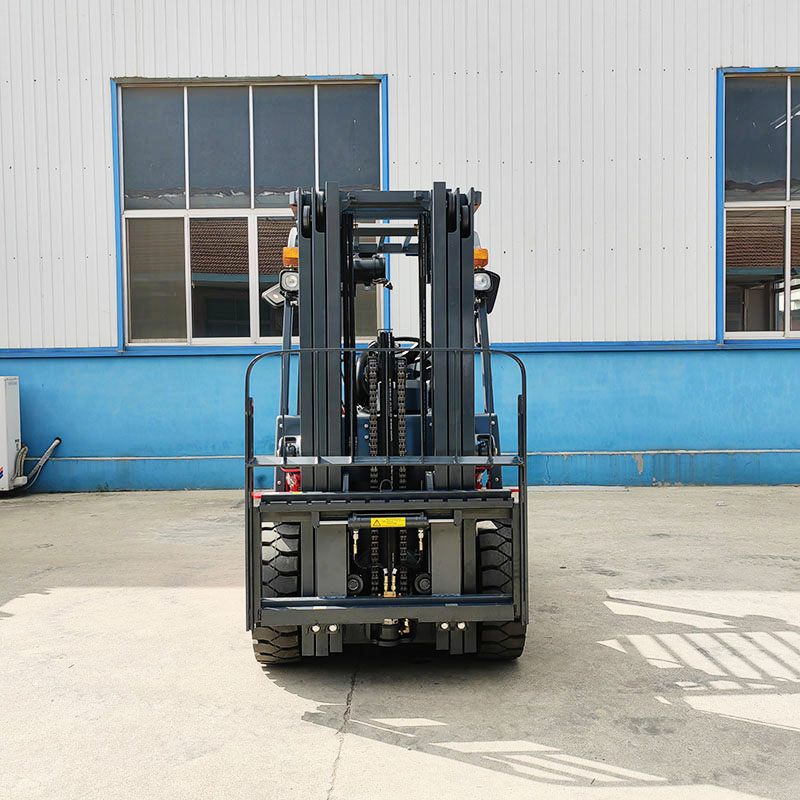

The ultra-wide view mast ensures clear visibility of forks and surroundings; sloped rear counterweight and fenders enhance rearward visibility.
Durable Tires
Front tires are special heavy-duty truck tires with a wide footprint, offering excellent stability and load capacity in rough environments.
Upgraded Hydraulic System
The load-sensing system increases lifting speed by 15% and reduces hydraulic oil temperature by 8-10℃, lowering overheating risks.
| | | |
| Characteristics | ||||
| 1.01 | Manufacturer | YEAWEY | ||
| 1.02 | Model | CPCD30 | ||
| 1.03 | Load capacity | kg | 3000 | |
| 1.04 | Load center | mm | 500 | |
| 1.05 | Fuel type | Diesel | ||
| 1.06 | Drive type | Sit-on type | ||
| 2.01 | Lifting height (standard) | H3 | mm | 3000 |
| 2.02 | Mastoverall height(Fork to the ground and mast be verfical) | H1 | mm | 2070 |
| 2.03 | Max.fork lifting height(With backrest) | H4 | mm | 4217 |
| 2.04 | Free lift height | H2 | mm | 155 |
| 2.05 | Overall height(Overhead guard) | H5 | mm | 2140 |
| 2.06 | Min.ground dearance(At the chassis) | H6 | mm | 135 |
| 2.07 | Distance from the surface of the seat to the overhead guard | mm | mm | 1050 |
| 2.08 | Traction pin height | mm | mm | 310 |
| 2.09 | Backrest height(Caloulated from the surface of the fork) | mm | 1182 | |
| 2.10 | Overall length(With fork/Without fork) | (L1/L) | mm | 3814/2744 |
| 2.11 | Wheel base | Y | mm | 1750 |
| 2.12 | Front overhang | X1 | mm | 478 |
| 2.13 | Rear overhang | X2 | mm | 520 |
| 2.14 | Overall width | 2 | mm | 1225 |
| 2.15 | Tread(Front tread/Rear tread) | (3/5) | mm | 1000/970 |
| 2.16 | Fork adjustable range(the external of the fork)(Max,/Min.) | 4 | mm | 1060/250 |
| 2.17 | Min. turning radius(Exterior) | r | mm | 2400 |
| 2.18 | Mast tilting angle(forward/rear) | deg. | deg. | 6/12 |
| 2.19 | Fork size | LxWxT | mm | 1070X125X45 |
| Dimenslons | ||||
| 3.01 | Total weight | kg | 4270 | |
| 3.02 | Weight distribution load(Front/Rear) | kg | 6430/840 | |
| 3.03 | Weight distribution lunload(Front/Rear) | kg | 1750/2520 | |
| Dimensions | ||||
| 4.01 | Wheel number x=drive wheel(Front/Rear) | 2X/2 | ||
| 4.02 | Tire type(Front/Rear) | Pneumatic tire | ||
| 4.03 | Tire size(Front/Rear) | 28X9-15-14PR/6.5-10-10PR | ||
| 4.04 | Service brake | Hydraulic-foot Pedal | ||
| 4.05 | Parkingbrake | Mechanical-hand Lever | ||
| YEAWEY forklift meet all emission standards. | |||||||
| Item | Engine model | Origin | Fuel type | Truck model | Emission std | Transmissioin | Rated Power kw/rpm |
| 1 | Xinchai NC485 | China | Diesel | 1.5-1.8t | China stgae II | China | 30/2600 |
| 2 | Xinchai C490BPG | China | Diesel | 2.0-3.5t | China stgae II | China | 40/2650 |
| 3 | Xinchai A495BPG | China | Diesel | 3.5-4.0t | China stgae II | China | 42/2650 |
| 4 | Xinchai 3E22YG51 | China | Diesel | 2.0-3.5t | Euro stage V | China | 44.8/2400 |
| 5 | ISUZU C240 | Japan | Diesel | 2.0-3.5t | Euro stage III | China | 35.4/2500 |
| 6 | ISUZU 4JG2 | Japan | Diesel | 3.5-4.0t | Euro stage III | China | 46/2450 |
| 7 | MITSUBISHI S4S | Japan | Diesel | 2.0-3.5t | Euro stage III | China | 35.3/2250 |
| 8 | YANMAR 4TNE98 | Japan | Diesel | 2.0-4.0t | Euro stage III | China | 43/2300 |
| 9 | Commuis | China | Diesel | 2.0-3.5t | EPA 4 | China | 43/2500 |

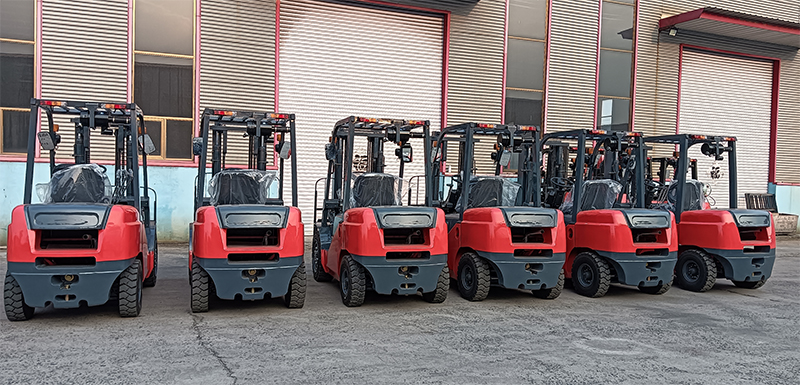

Long-span Handling in Industrial Raw Material Warehouse — YEAWEY YG Series Internal Combustion Forklift
Client: Finished Product Warehouse of a South African Aluminum Profile Factory
Scenario: Aluminum ingots/profiles weigh 3 tons per pallet. Transporting them from the production line to the warehouse requires traversing a 300-meter open-air passage (with a surface temperature of 50℃ in summer).
Challenges:
Batteries of electric forklifts degrade rapidly under high temperatures, with an endurance of only 3 hours.
Heavy dust from open-air operations, coupled with poor heat dissipation in traditional forklifts, easily leads to overheating (boiling).
Solutions:
Deployed Yeawey 3-ton internal combustion forklifts (equipped with turbocharged engines + aluminum radiators), adaptable to high temperatures ranging from 40℃ to 55℃.
Configured with dust-proof air filters and hydraulic oil coolers, enabling 10 hours of continuous operation without overheating.
Customized extended forks (1.8 meters) allow handling 2 bundles of aluminum profiles per pallet, doubling the efficiency.
Results:
The failure rate during the high-temperature season decreased by 90%, reducing maintenance costs by RMB 650,000 per year.
Open-air handling efficiency increased from 8 pallets/hour to 15 pallets/hour, supporting a 30% expansion of the factory's production capacity.
