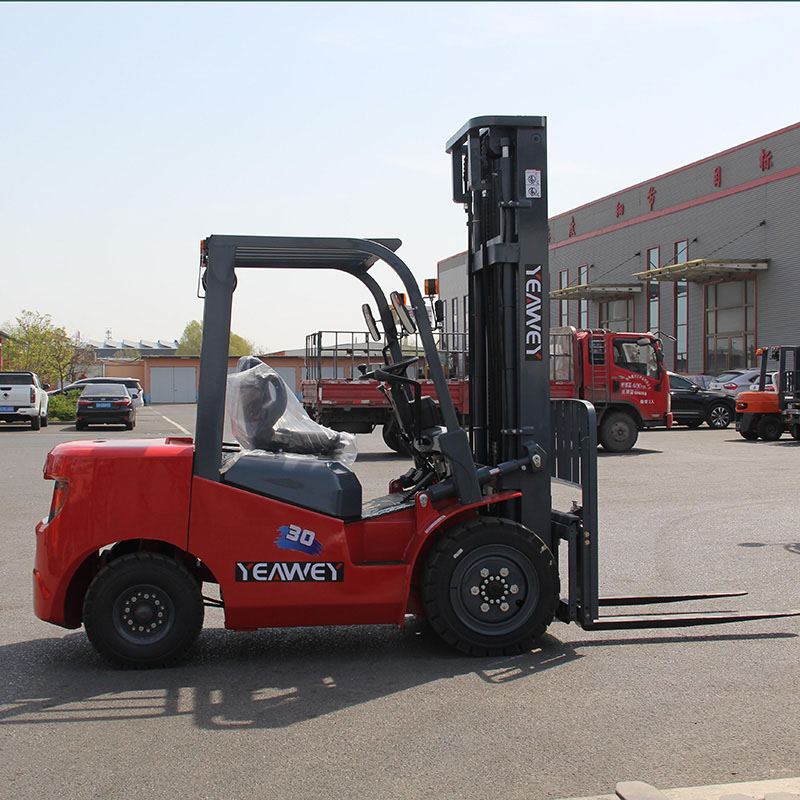

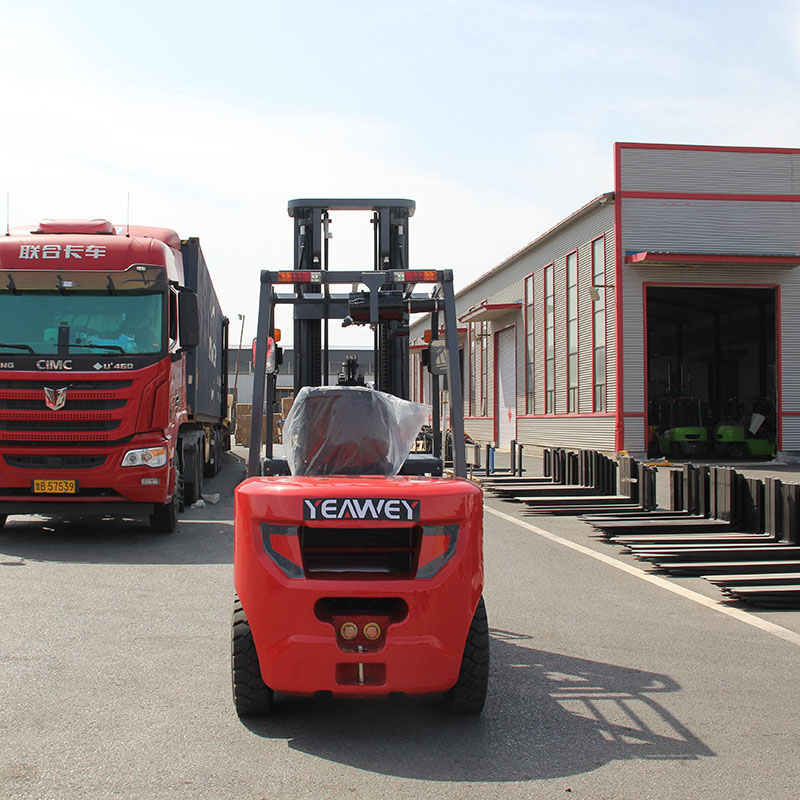

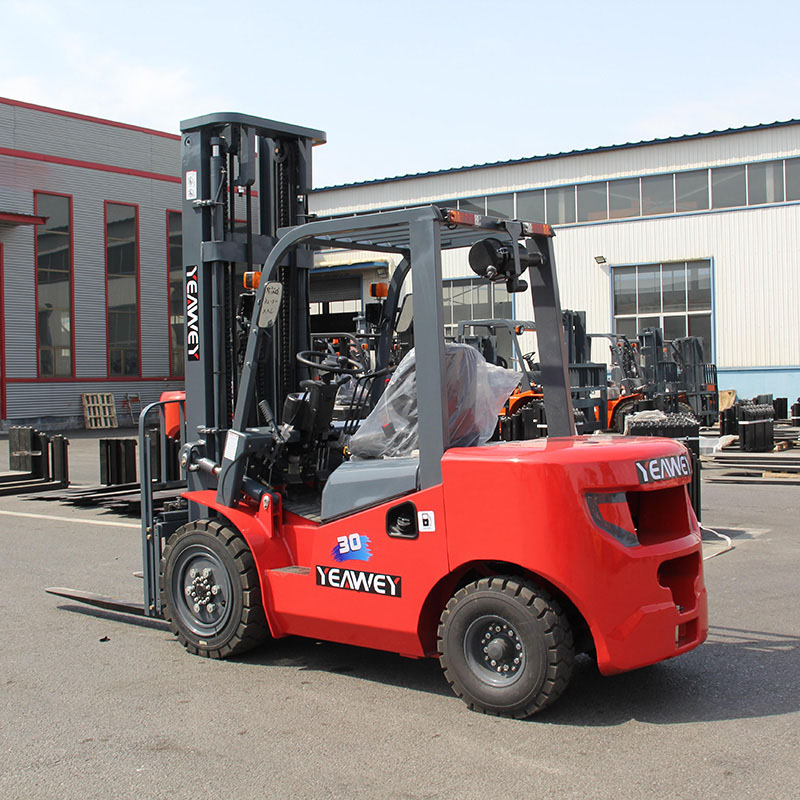

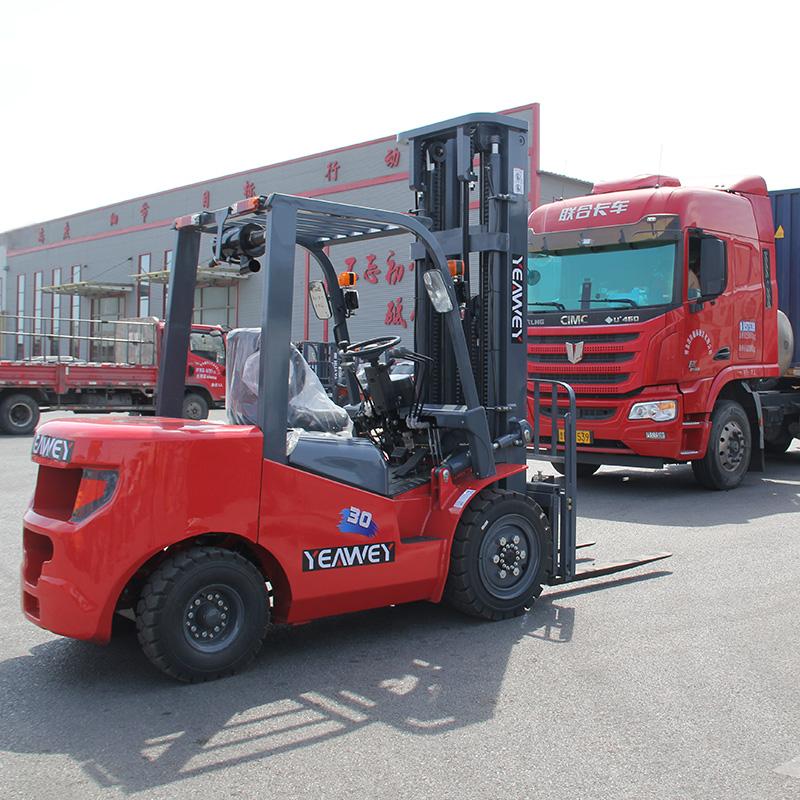

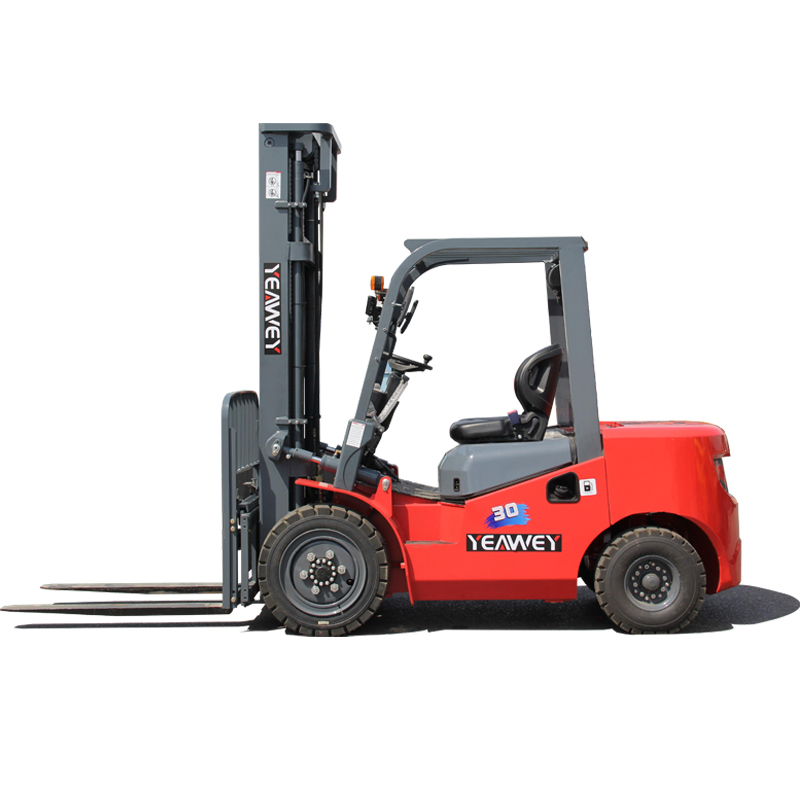

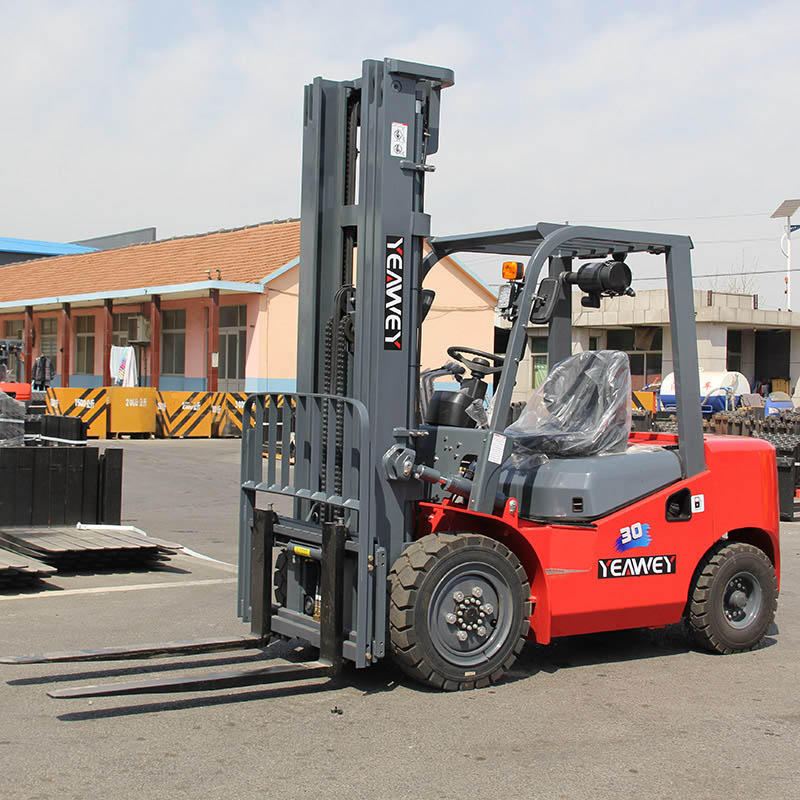

CPCD30-K2
YEAWEY
YW84272090CPCD30-K2
| Engine: | |
|---|---|
| Mast type: | |
| Lift height: | |
| Tires: | |
| Fork: | |
| Color: | |
| Quantity: | |
Ergonomic Comfort
The gear lever’s position aligns with natural operating habits, minimizing unnecessary arm movements to reduce fatigue during long shifts, ensuring smoother and more intuitive gear changes. Dual rear lights and warning lights boast a sensible layout, guaranteeing visibility in low-light conditions while allowing quick, tool-free access for easy maintenance.
Workspace & Overhead Guard
The suspension-type inching pedal frees up valuable foot space, letting operators adjust positions freely to ease leg strain during prolonged use and maneuver precisely in tight areas. The overhead guard with curved front legs significantly boosts headroom, preventing accidental bumps while maintaining robust structural protection for all operators.
High-quality Durable Tires
Wide, high-quality durable tires deliver exceptional traction on rough, uneven terrain like gravel or mud, enhancing overall stability. They evenly distribute weight to prevent sinking in challenging conditions, reducing wear and tear while securely stabilizing loads for safe transportation across diverse worksites.
Improved Hood Opening Angle
The hood opens to an 80° angle via a simple pull lever, requiring 50% less force for effortless operation. This wide opening fully exposes key maintenance parts, simplifying daily checks and routine servicing, aiding early detection of issues to extend the equipment’s service life effectively.
| | | |
| Characteristics | ||||
| 1.01 | Manufacturer | YEAWEY | ||
| 1.02 | Model | CPCD30 | ||
| 1.03 | Load capacity | kg | 3000 | |
| 1.04 | Load center | mm | 500 | |
| 1.05 | Fuel type | Diesel | ||
| 1.06 | Drive type | Sit-on type | ||
| 2.01 | Lifting height (standard) | H3 | mm | 3000 |
| 2.02 | Mastoverall height(Fork to the ground and mast be verfical) | H1 | mm | 2070 |
| 2.03 | Max.fork lifting height(With backrest) | H4 | mm | 4217 |
| 2.04 | Free lift height | H2 | mm | 155 |
| 2.05 | Overall height(Overhead guard) | H5 | mm | 2140 |
| 2.06 | Min.ground dearance(At the chassis) | H6 | mm | 135 |
| 2.07 | Distance from the surface of the seat to the overhead guard | mm | mm | 1050 |
| 2.08 | Traction pin height | mm | mm | 310 |
| 2.09 | Backrest height(Caloulated from the surface of the fork) | mm | 1182 | |
| 2.10 | Overall length(With fork/Without fork) | (L1/L) | mm | 3814/2744 |
| 2.11 | Wheel base | Y | mm | 1750 |
| 2.12 | Front overhang | X1 | mm | 478 |
| 2.13 | Rear overhang | X2 | mm | 520 |
| 2.14 | Overall width | 2 | mm | 1225 |
| 2.15 | Tread(Front tread/Rear tread) | (3/5) | mm | 1000/970 |
| 2.16 | Fork adjustable range(the external of the fork)(Max,/Min.) | 4 | mm | 1060/250 |
| 2.17 | Min. turning radius(Exterior) | r | mm | 2400 |
| 2.18 | Mast tilting angle(forward/rear) | deg. | deg. | 6/12 |
| 2.19 | Fork size | LxWxT | mm | 1070X125X45 |
| Dimenslons | ||||
| 3.01 | Total weight | kg | 4270 | |
| 3.02 | Weight distribution load(Front/Rear) | kg | 6430/840 | |
| 3.03 | Weight distribution lunload(Front/Rear) | kg | 1750/2520 | |
| Dimensions | ||||
| 4.01 | Wheel number x=drive wheel(Front/Rear) | 2X/2 | ||
| 4.02 | Tire type(Front/Rear) | Pneumatic tire | ||
| 4.03 | Tire size(Front/Rear) | 28X9-15-14PR/6.5-10-10PR | ||
| 4.04 | Service brake | Hydraulic-foot Pedal | ||
| 4.05 | Parkingbrake | Mechanical-hand Lever | ||
| YEAWEY forklift meet all emission standards. | |||||||
| Item | Engine model | Origin | Fuel type | Truck model | Emission std | Transmissioin | Rated Power kw/rpm |
| 1 | Xinchai NC485 | China | Diesel | 1.5-1.8t | China stgae II | China | 30/2600 |
| 2 | Xinchai C490BPG | China | Diesel | 2.0-3.5t | China stgae II | China | 40/2650 |
| 3 | Xinchai A495BPG | China | Diesel | 3.5-4.0t | China stgae II | China | 42/2650 |
| 4 | Xinchai 3E22YG51 | China | Diesel | 2.0-3.5t | Euro stage V | China | 44.8/2400 |
| 5 | ISUZU C240 | Japan | Diesel | 2.0-3.5t | Euro stage III | China | 35.4/2500 |
| 6 | ISUZU 4JG2 | Japan | Diesel | 3.5-4.0t | Euro stage III | China | 46/2450 |
| 7 | MITSUBISHI S4S | Japan | Diesel | 2.0-3.5t | Euro stage III | China | 35.3/2250 |
| 8 | YANMAR 4TNE98 | Japan | Diesel | 2.0-4.0t | Euro stage III | China | 43/2300 |
| 9 | Commuis | China | Diesel | 2.0-3.5t | EPA 4 | China | 43/2500 |
