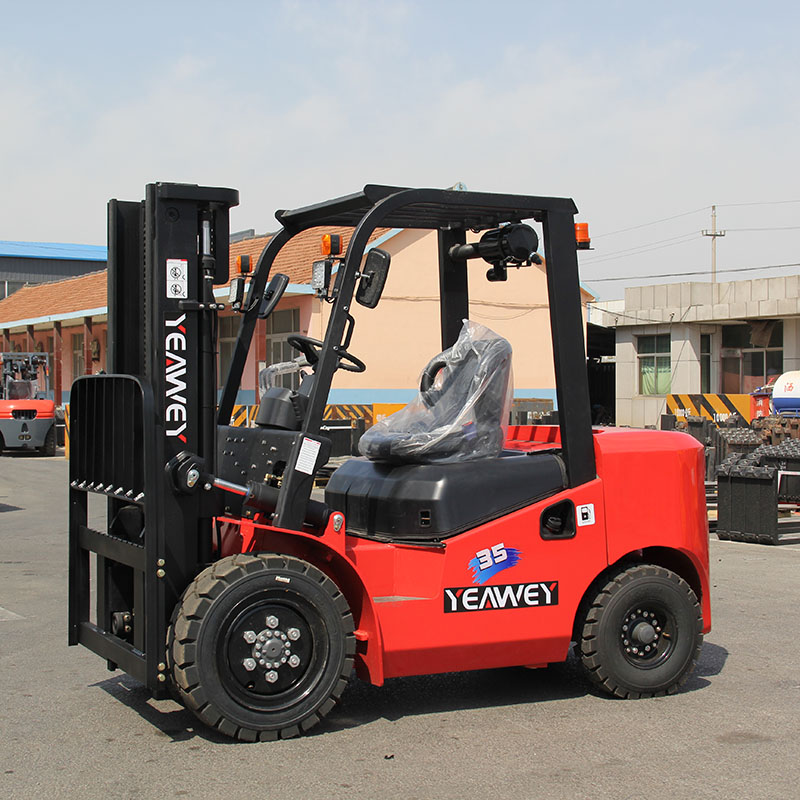

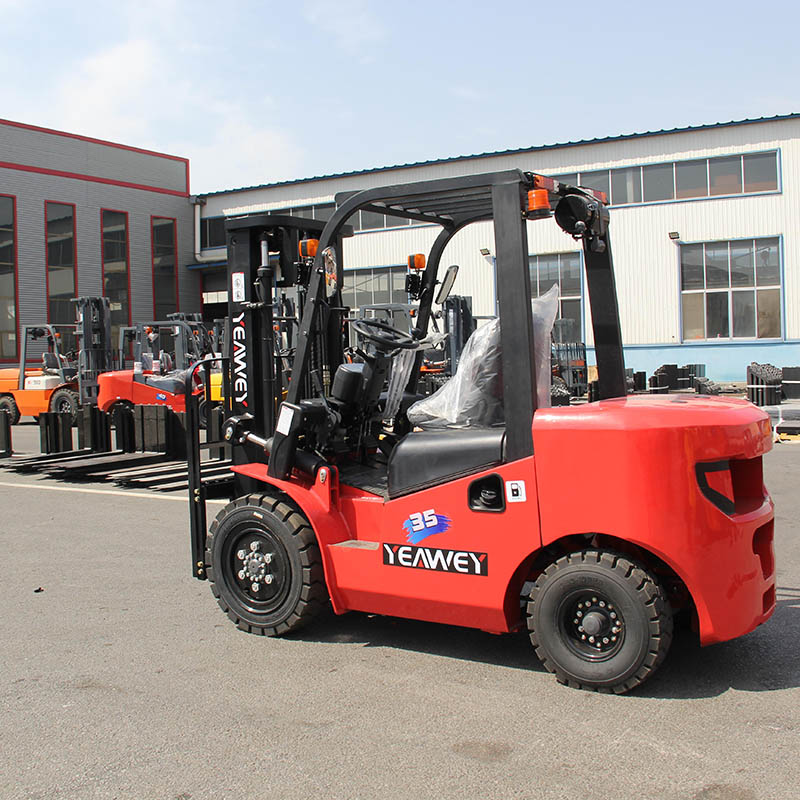

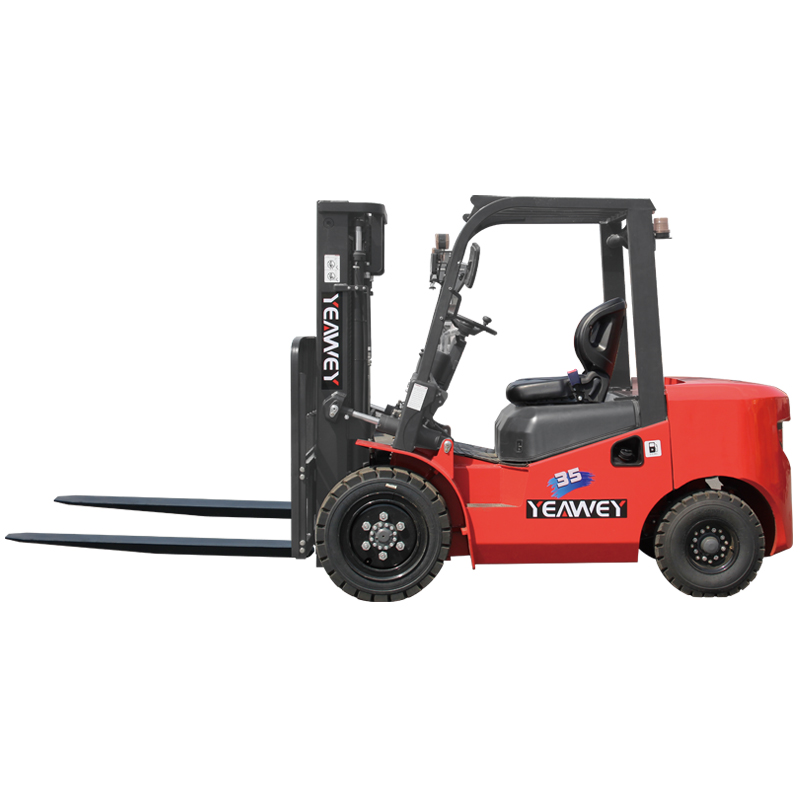

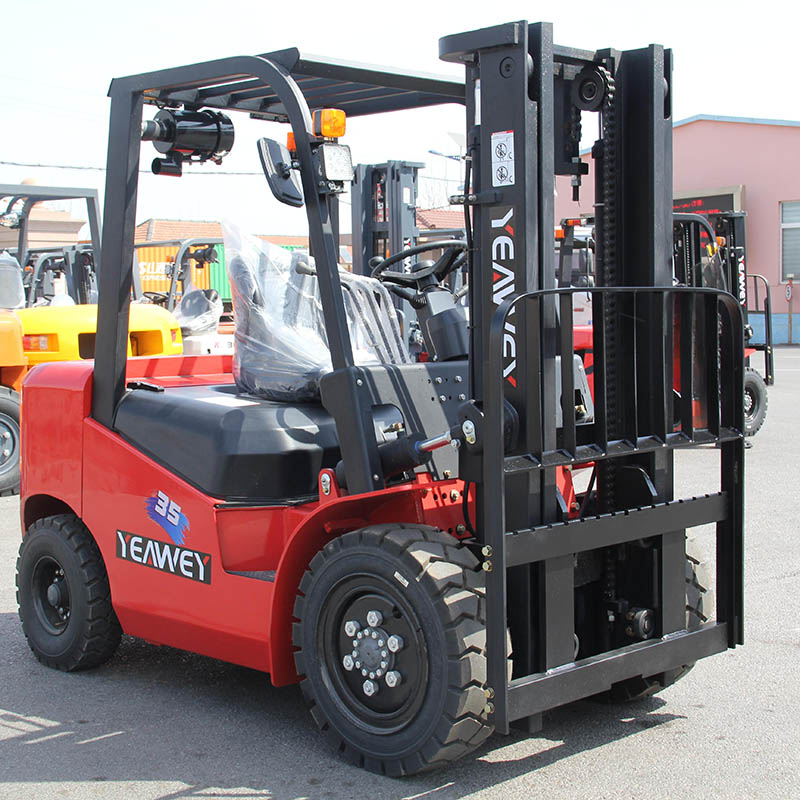

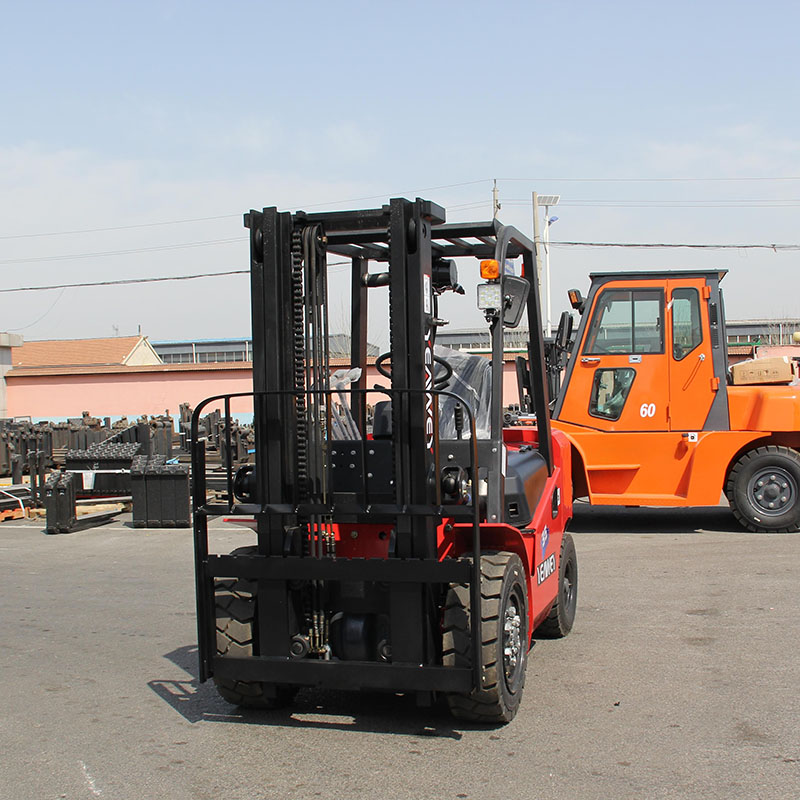

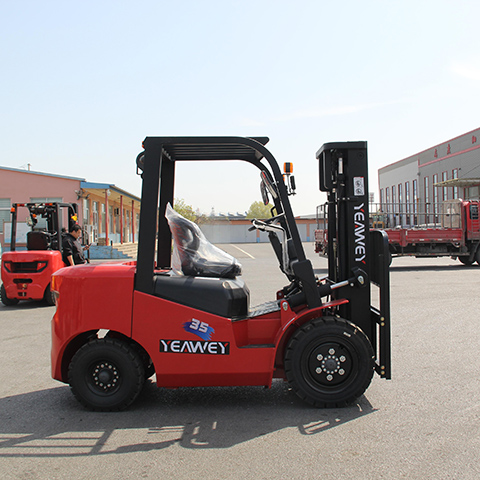

CPCD35-K2
YEAWEY
YW84272090CPCD30-K2
| engine: | |
|---|---|
| Mast type: | |
| Lift height: | |
| Tires: | |
| Fork: | |
| Color: | |
| Quantity: | |
Spacious Operating Space, Comfortable Driving Experience
The internal width of the cab reaches 1050mm, with leg space 12% larger than the industry average. The adjustable suspended seat with lumbar support effectively relieves back fatigue during long-time operation. The multi-functional operating handle integrates lifting, tilting functions with 30% reduced operating force(Optional), combined with heating and cooling air conditioning and shock-absorbing foot pads, creating a comfortable working environment for operators.
Convenient Maintenance System, Reducing Downtime
The engine compartment adopts a side-turn design with an opening angle of 85°, making key components such as fuel filters and air filters easily accessible. The centralized grease nipple layout facilitates lubrication maintenance, and it is equipped with an intelligent fault diagnostic instrument interface for quickly reading fault codes. The maintenance manual details the replacement steps of wearing parts, allowing ordinary mechanics to complete daily maintenance, significantly reducing equipment downtime.
Durable Structural Components, Extending Service Life
The forks are forged from 45# high-strength alloy steel with a thickness of 30mm, reaching HRC38-42 hardness after heat treatment, with 20% improved bending strength. The mast rail surface is chrome-plated, combined with wear-resistant sliders to reduce friction loss during lifting. The frame adopts integral welding technology, with reinforcing ribs added at key parts, adapting to the harsh environment of long-term heavy-load operations.
Intelligent Operation Assistance, Improving Work Accuracy
Equipped with a high-definition LCD instrument panel, it displays key data such as fuel consumption, water temperature, hydraulic oil pressure in real-time, and automatically gives sound and light alarms when abnormalities occur. Optional fork level and height limiter help operators accurately control the cargo
| | | |
| Characteristics | ||||
| 1.01 | Manufacturer | YEAWEY | ||
| 1.02 | Model | CPCD35 | ||
| 1.03 | Load capacity | kg | 3500 | |
| 1.04 | Load center | mm | 500 | |
| 1.05 | Fuel type | Diesel | ||
| 1.06 | Drive type | Sit-on type | ||
| 2.01 | Lifting height (standard) | H3 | mm | 3000 |
| 2.02 | Mastoverall height(Fork to the ground and mast be verfical) | H1 | mm | 2120 |
| 2.03 | Max.fork lifting height(With backrest) | H4 | mm | 4217 |
| 2.04 | Free lift height | H2 | mm | 160 |
| 2.05 | Overall height(Overhead guard) | H5 | mm | 2140 |
| 2.06 | Min.ground dearance(At the chassis) | H6 | mm | 135 |
| 2.07 | Distance from the surface of the seat to the overhead guard | mm | mm | 1050 |
| 2.08 | Traction pin height | mm | mm | 310 |
| 2.09 | Backrest height(Caloulated from the surface of the fork) | mm | 1177 | |
| 2.10 | Overall length(With fork/Without fork) | (L1/L) | mm | 3820/2750 |
| 2.11 | Wheel base | Y | mm | 1750 |
| 2.12 | Front overhang | X1 | mm | 484 |
| 2.13 | Rear overhang | X2 | mm | 520 |
| 2.14 | Overall width | 2 | mm | 1225 |
| 2.15 | Tread(Front tread/Rear tread) | (3/5) | mm | 1000/970 |
| 2.16 | Fork adjustable range(the external of the fork)(Max,/Min.) | 4 | mm | 1060/250 |
| 2.17 | Min. turning radius(Exterior) | r | mm | 2400 |
| 2.18 | Mast tilting angle(forward/rear) | deg. | deg. | 6/12 |
| 2.19 | Fork size | LxWxT | mm | 1070X125X50 |
| Dimenslons | ||||
| 3.01 | Total weight | kg | 4600 | |
| 3.02 | Weight distribution load(Front/Rear) | kg | 7280/820 | |
| 3.03 | Weight distribution lunload(Front/Rear) | kg | 1790/2810 | |
| Dimensions | ||||
| 4.01 | Wheel number x=drive wheel(Front/Rear) | 2X/2 | ||
| 4.02 | Tire type(Front/Rear) | Pneumatic tire | ||
| 4.03 | Tire size(Front/Rear) | 28X9-15-14PR/6.5-10-10PR | ||
| 4.04 | Service brake | Hydraulic-foot Pedal | ||
| 4.05 | Parkingbrake | Mechanical-hand Lever | ||
| YEAWEY forklift meet all emission standards. | |||||||
| Item | Engine model | Origin | Fuel type | Truck model | Emission std | Transmissioin | Rated Power kw/rpm |
| 1 | Xinchai NC485 | China | Diesel | 1.5-1.8t | China stgae II | China | 30/2600 |
| 2 | Xinchai C490BPG | China | Diesel | 2.0-3.5t | China stgae II | China | 40/2650 |
| 3 | Xinchai A495BPG | China | Diesel | 3.5-4.0t | China stgae II | China | 42/2650 |
| 4 | Xinchai 3E22YG51 | China | Diesel | 2.0-3.5t | Euro stage V | China | 44.8/2400 |
| 5 | ISUZU C240 | Japan | Diesel | 2.0-3.5t | Euro stage III | China | 35.4/2500 |
| 6 | ISUZU 4JG2 | Japan | Diesel | 3.5-4.0t | Euro stage III | China | 46/2450 |
| 7 | MITSUBISHI S4S | Japan | Diesel | 2.0-3.5t | Euro stage III | China | 35.3/2250 |
| 8 | YANMAR 4TNE98 | Japan | Diesel | 2.0-4.0t | Euro stage III | China | 43/2300 |
| 9 | Commuis | China | Diesel | 2.0-3.5t | EPA 4 | China | 43/2500 |
